HD30P1ES Nidec | 30 hp 3600 RPM 286TS Frame 230/460V TEFC Nidec Electric Motor
HD30P1ES Nidec | 30 hp 3600 RPM 286TS Frame 230/460V TEFC Nidec Electric Motor
HD30P1ES Nidec | 30 hp 3600 RPM 286TS Frame 230/460V TEFC Nidec Electric Motor
HD30P1ES Nidec | 30 hp 3600 RPM 286TS Frame 230/460V TEFC Nidec Electric Motor

Nidec

HD30P1ES Nidec | 30 hp 3600 RPM 286TS Frame 230/460V TEFC Nidec Electric Motor

(No reviews) Write a Review
$2,199.95
$1,799.95
SKU HD30P1ES
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Frame 286TS
Enclosure TEFC
Amperage 69.0/35.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 30 hp 3600 RPM, 69.0/35.0 amps 230/460 Volts Three Phase Motor
  • NEMA 286TS Frame Keyed Shaft 1 5/8" Diameter x 3 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

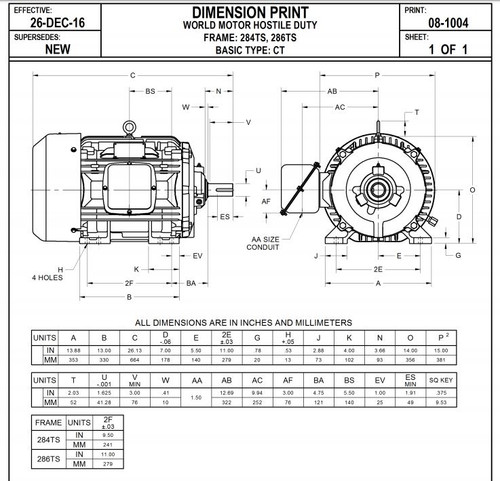

  • "C" Dimension = 26.1"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GA04, H30P1DS

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 3600
Phase Three Phase
Frame 286TS
Enclosure TEFC
Amperage 69.0/35.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
