- 30 hp 3600 RPM, 69.0/35.0 amps 230/460 Volts Three Phase Motor
- NEMA 286T Frame Keyed Shaft 1 7/8" Diameter x 4 5/8"
- Service Factor: 1.15 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

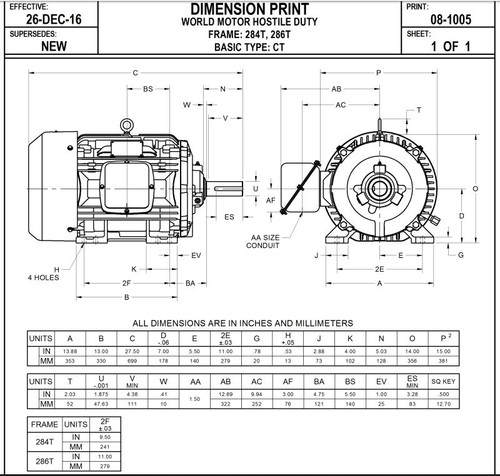

- "C" Dimension = 27.5"
- 1 Year Manufacture Warranty
Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty. 40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
