The HD30P2ES is a premium efficiency, 30 horsepower electric motor designed for industrial applications requiring reliable, continuous duty performance. It replaces standard motors in equipment needing a 286TS frame and is suitable for both mill and chemical duty environments.

Key Specifications

• Horsepower: 30 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 70.0/35.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

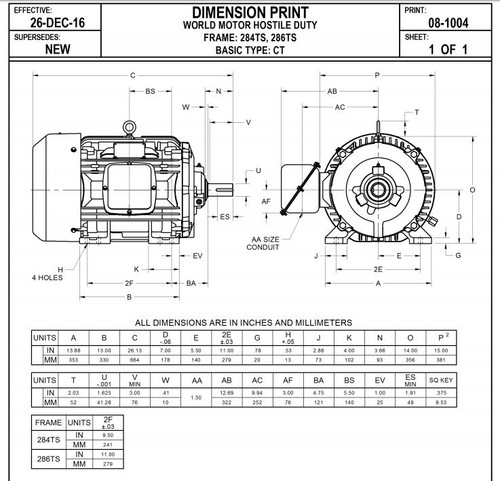

• Frame / Diameter: NEMA 286TS Frame, "C" Dimension 26.1"
• Shaft Dimensions: Keyed shaft, 1 5/8" diameter x 3 1/4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and is constructed with a cast iron frame finished in corrosion-resistant mill and chemical duty paint. It includes a stainless steel nameplate with CE marking, zinc-plated hardware, steel fan cover, conduit box, and condensation drains with plastic plugs. The motor supports 20:1 variable torque and 5:1 constant torque when powered by an inverter, making it suitable for a wide range of industrial variable speed applications. Wiring diagrams are provided on the motor nameplate for ease of installation.

Warranty

1 Year Manufacturer Warranty
