HD60P3E Nidec | 60 hp 1200 RPM 404T Frame 230/460V TEFC Nidec Electric Motor
HD60P3E Nidec | 60 hp 1200 RPM 404T Frame 230/460V TEFC Nidec Electric Motor
HD60P3E Nidec | 60 hp 1200 RPM 404T Frame 230/460V TEFC Nidec Electric Motor
HD60P3E Nidec | 60 hp 1200 RPM 404T Frame 230/460V TEFC Nidec Electric Motor

Nidec

HD60P3E Nidec | 60 hp 1200 RPM 404T Frame 230/460V TEFC Nidec Electric Motor

(No reviews) Write a Review
$5,876.50
$5,246.42
SKU HD60P3E
UPC 7.86E+11
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 60 HP
RPM 1200
Phase Three Phase
Frame 404T
Enclosure TEFC
Amperage 141.0/71.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 60 hp 1200 RPM, 141.0/71.0 amps 230/460 Volts Three Phase Motor
  • NEMA 404T Frame Keyed Shaft 2 7/8" Diameter x 7 1/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

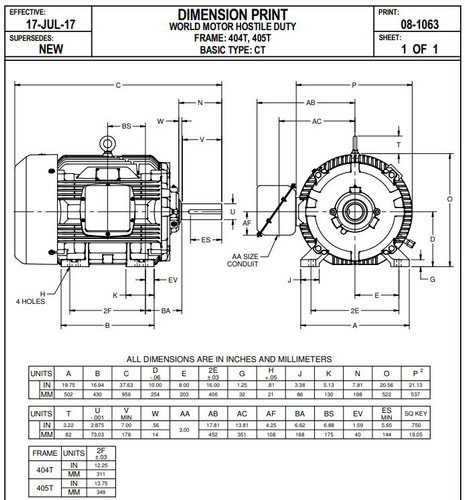

  • "C" Dimension = 37.6"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GH04, H60P3E

Specifications
Voltage 230/460V
Horsepower 60 HP
RPM 1200
Phase Three Phase
Frame 404T
Enclosure TEFC
Amperage 141.0/71.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
