HD75P1ES Nidec | 75 hp 3600 RPM 365TS Frame 230/460V TEFC Nidec Electric Motor
HD75P1ES Nidec | 75 hp 3600 RPM 365TS Frame 230/460V TEFC Nidec Electric Motor
HD75P1ES Nidec | 75 hp 3600 RPM 365TS Frame 230/460V TEFC Nidec Electric Motor
HD75P1ES Nidec | 75 hp 3600 RPM 365TS Frame 230/460V TEFC Nidec Electric Motor

Nidec

HD75P1ES Nidec | 75 hp 3600 RPM 365TS Frame 230/460V TEFC Nidec Electric Motor

(No reviews) Write a Review
$5,753.45
$5,136.59
SKU HD75P1ES
UPC 7.86E+11
Availability Subject to availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 75 HP
RPM 3600
Phase Three Phase
Frame 365TS
Enclosure TEFC
Amperage 165.0/83.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
Adding to cart… The item has been added
Description
  • 75 hp 3600 RPM, 165.0/83.0 amps 230/460 Volts Three Phase Motor
  • NEMA 365TS Frame Keyed Shaft 1 7/8" Diameter x 3 3/4"
  • Service Factor: 1.15 - overload protection = None
  • Reversible - Rigid Base Mount - Ball Bearings - Class F Insulation

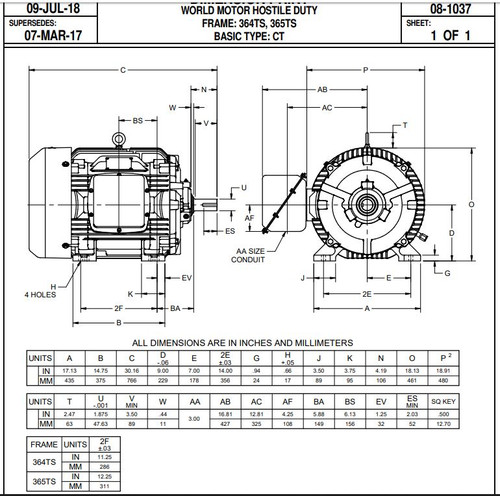

  • "C" Dimension = 30.2"
  • 1 Year Manufacture Warranty

Hostile duty, premium efficient, world motor, cast iron frame. Corrosion resistant mill & chemical duty paint, stainless steel nameplate (with CE mark) & zinc plated hardware. Steel fan cover & conduit box, condensation drains with plastic plugs. Suitable for 20:1 variable torque; 5:1 constant torque on inverter power. Motor has a rigid base mount with a keyed shaft. Continuous Duty.  40C Ambient Temp. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.

Model GD02, H75P1ES

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 75 HP
RPM 3600
Phase Three Phase
Frame 365TS
Enclosure TEFC
Amperage 165.0/83.0 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Continuous Duty
!
