HD75P2E Nidec | 75 hp 1800 RPM 365T Frame 230/460V TEFC Nidec Electric Motor

HD75P2E Nidec | 75 hp 1800 RPM 365T Frame 230/460V TEFC Nidec Electric Motor

This Nidec electric motor delivers 75 horsepower at 1800 RPM, designed for industrial applications requiring reliable, continuous-duty performance. It is a premium efficient, hostile duty motor suitable for replacing similar 365T frame motors in various mill, chemical, and general industrial environments.

Key Specifications

• Horsepower: 75 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 170.0/85.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

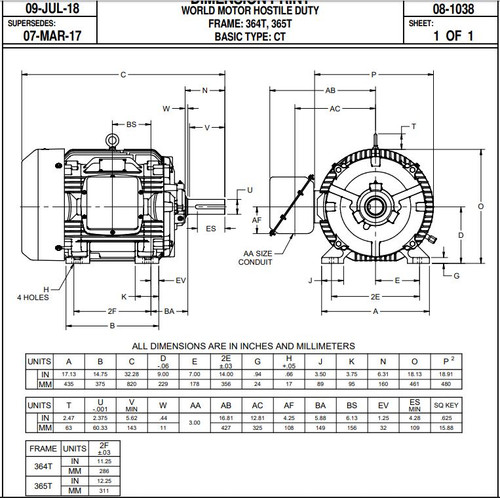

• Frame / Diameter: NEMA 365T Frame, 2 3/8" Diameter
• Shaft Dimensions: 2 3/8" Diameter x 5 7/8" Length, Keyed Shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base mount and is constructed with a cast iron frame finished in corrosion-resistant mill and chemical duty paint. It includes a stainless steel nameplate with CE marking, zinc-plated hardware, a steel fan cover, and conduit box. Condensation drains with plastic plugs are provided to enhance durability in harsh environments.

Designed for inverter power applications, it supports 20:1 variable torque and 5:1 constant torque. The motor operates continuously at a 40°C ambient temperature and includes a wiring diagram on the nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
