HG155 Marathon 1/8 hp 115V 900 RPM ODP 56 Frame Resilient Base Blower Motor

SKU:: HG155
UPC:: 7.23E+11
Weight:: 32.00 LBS
Width:: 8.00 (in)
Height:: 8.00 (in)
Depth:: 14.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115V
Horsepower:: 1/8 HP
RPM:: 900
Frame:: 56
Enclosure:: ODP
Hertz:: 60 Hz
Amperage:: 4.6 Amps
Bearings:: Ball Bearings
Speeds:: 1-Speed
Insulation Class:: Class B

Current Stock:

Was: $711.28

Now: $456.78

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

HG155 Marathon 1/8 hp 115V 900 RPM ODP 56 Frame Resilient Base Blower Motor

The HG155 Marathon blower motor is a reliable replacement motor designed for air circulation applications within buildings. It features a durable open drip proof (ODP) enclosure and is suitable for both vertical and horizontal shaft mounting.

Key Specifications

Horsepower: 1/8 hp
RPM: 900
Voltage: 115 V, 60 Hz
Amperage: 4.6 A
Enclosure: Open Drip Proof (ODP)

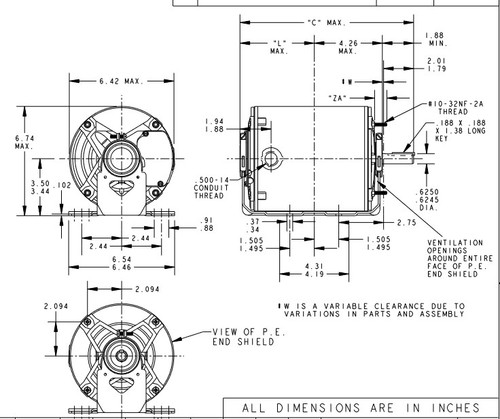

Frame / Diameter: NEMA 56 Frame
Shaft Dimensions: 1 7/8" length x 5/8" diameter
Rotation: Reversible
Bearings: Ball Bearings

Product Features & Fitment

This motor includes a resilient base for stable mounting and features automatic thermal protection for enhanced durability. It operates at a single speed and utilizes Class B insulation, making it suitable for various blower applications requiring reliable airflow.
