HO100P2BLG Nidec 100 hp 1800 RPM 230/460V 3-phase 404TP Frame Vertical Holloshaft Motor

HO100P2BLG Nidec 100 hp 1800 RPM 230/460V 3-phase 404TP Frame Vertical Holloshaft Motor

SKU:
HO100P2BLG
Weight:
1,110.00 LBS
Shipping:
Calculated at Checkout
ON SALE:
LIMITED TIME DISCOUNT
Was: $11,090.00
Now: $9,902.20
Adding to cart… The item has been added
  • 100 HP 1800 RPM, 228/114 amps, 230/460V 60 Hz. 3-Phase

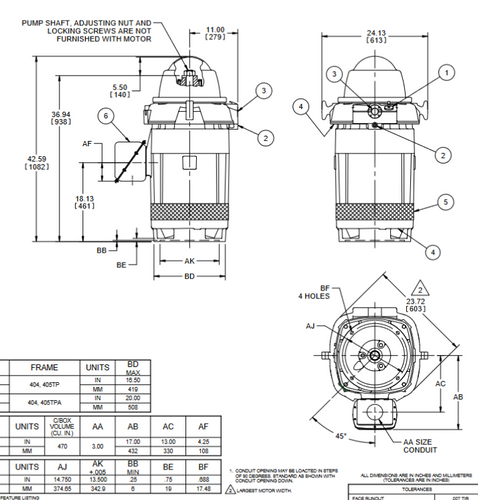

  • NEMA 404TP Frame, RUS type, 16.5" Dia. Base
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 36 15/16", Diameter - 1 1/2" , Keyway 3/8"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. 1 Year Manufacture Warranty. HF47

!
