HO10P3BLF Nidec 10 hp 1200 RPM 230/460V 3-phase 256TPH Frame Vertical Holloshaft Motor
HO10P3BLF Nidec 10 hp 1200 RPM 230/460V 3-phase 256TPH Frame Vertical Holloshaft Motor
HO10P3BLF Nidec 10 hp 1200 RPM 230/460V 3-phase 256TPH Frame Vertical Holloshaft Motor
HO10P3BLF Nidec 10 hp 1200 RPM 230/460V 3-phase 256TPH Frame Vertical Holloshaft Motor

Nidec

HO10P3BLF Nidec 10 hp 1200 RPM 230/460V 3-phase 256TPH Frame Vertical Holloshaft Motor

(No reviews) Write a Review
$4,961.10
$4,429.57
SKU HO10P3BLF
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1200
Phase Three Phase
Frame 256TPH
Hertz 60 Hz
Amperage 25.4/12.7 Amps
Bearings Ball Bearings
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 10 HP 1200 RPM, 25.4/12.7 amps, 230/460V 60 Hz. 3 Phase

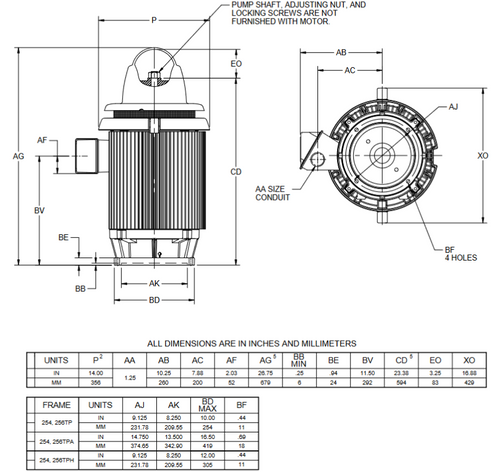

  • NEMA 256TPH Frame, AUS type, 12" Dia. Base
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 23 3/8", Diameter - 1" , Keyway 1/4"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. 1 Year Manufacture Warranty. FK94

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 10 HP
RPM 1200
Phase Three Phase
Frame 256TPH
Hertz 60 Hz
Amperage 25.4/12.7 Amps
Bearings Ball Bearings
Insulation Class Class F
!
