HO30V2BLF Nidec 30 hp 1800 RPM 230/460V 3-phase 286TPA Frame Inverter-Duty Vertical Holloshaft Motor
HO30V2BLF Nidec 30 hp 1800 RPM 230/460V 3-phase 286TPA Frame Inverter-Duty Vertical Holloshaft Motor
HO30V2BLF Nidec 30 hp 1800 RPM 230/460V 3-phase 286TPA Frame Inverter-Duty Vertical Holloshaft Motor
HO30V2BLF Nidec 30 hp 1800 RPM 230/460V 3-phase 286TPA Frame Inverter-Duty Vertical Holloshaft Motor

Nidec

HO30V2BLF Nidec 30 hp 1800 RPM 230/460V 3-phase 286TPA Frame Inverter-Duty Vertical Holloshaft Motor

(No reviews) Write a Review
$6,231.85
$5,563.82
SKU HO30V2BLF
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286TPA
Hertz 60 Hz
Amperage 70.0/35.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Duty Inverter Duty
Adding to cart… The item has been added
Description
  • 30 HP 1800 RPM, 70.0/35.0 amps, 230/460V 60 Hz. 3-Phase Inverter Duty

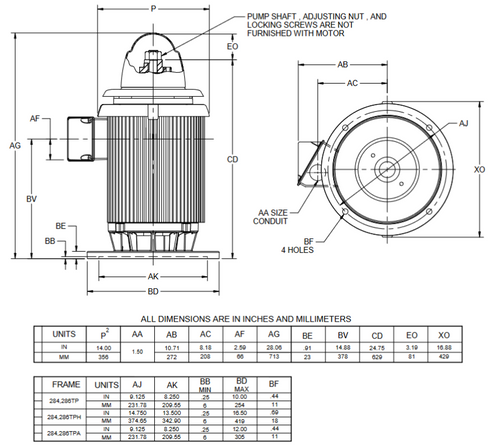

  • NEMA 286TPA Frame, AUSI type, 12.0" Dia. Base
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 24 3/4", Diameter - 1" , Keyway ¼"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. 1 Year Manufacture Warranty. FB99

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 30 HP
RPM 1800
Phase Three Phase
Frame 286TPA
Hertz 60 Hz
Amperage 70.0/35.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Duty Inverter Duty
!
