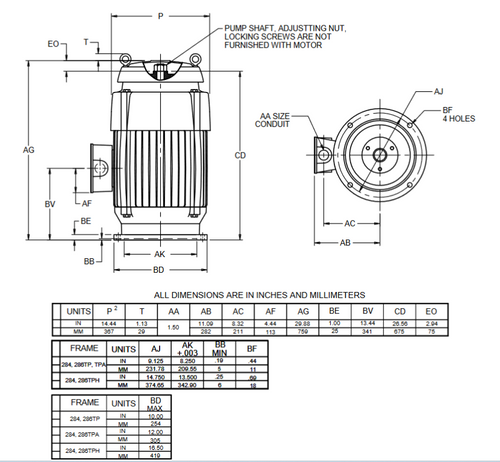

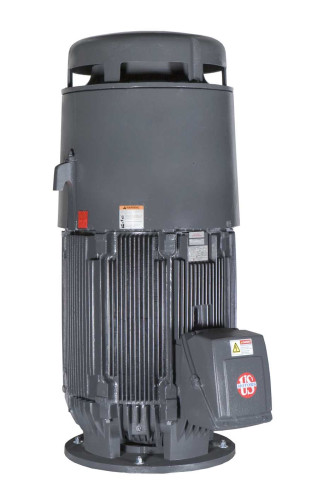

HT30P2BLF Nidec 30 hp 1800 RPM 230/460V 3-phase 286TPA Frame TEFC Vertical Holloshaft Sinewave Motor

SKU:: HT30P2BLF
UPC:
Availability:: Please email for availability
Weight:: 386.00 LBS
Shipping:: Calculated at Checkout
ON SALE:: LIMITED TIME DISCOUNT

Current Stock:

Was: $6,032.00

Now: $5,385.70

Quantity:

Adding to cart… The item has been added

Description
Compliance & Restrictions

30 HP 1800 RPM, 70.0/35.0 amps, 230/460V 60 Hz. 3 Phase
NEMA 286TPA Frame, TUS type, 12" Dia. Base, TEFC
1.15 Service Factor, Class F insulation, Thermal Protection: None
Non-Reversible Ratchet Rotation, Weather Protected Enclosure
P-Base Mounting, Ball Bearings, High Thrust

Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, 1 Year Manufacture Warranty. FL96
