HS5C1KLE Nidec 5 hp 3600 RPM 230V 1-phase 215P Frame Vertical Holloshaft Motor
HS5C1KLE Nidec 5 hp 3600 RPM 230V 1-phase 215P Frame Vertical Holloshaft Motor
HS5C1KLE Nidec 5 hp 3600 RPM 230V 1-phase 215P Frame Vertical Holloshaft Motor
HS5C1KLE Nidec 5 hp 3600 RPM 230V 1-phase 215P Frame Vertical Holloshaft Motor

Nidec

HS5C1KLE Nidec 5 hp 3600 RPM 230V 1-phase 215P Frame Vertical Holloshaft Motor

(No reviews) Write a Review
$4,240.05
$3,785.57
SKU HS5C1KLE
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 5 HP
RPM 3600
Phase Single Phase
Frame 215P
Hertz 60 Hz
Amperage 26.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 5 HP 3600 RPM, 26.0 amps, 230V 60 Hz. Capacitor Start

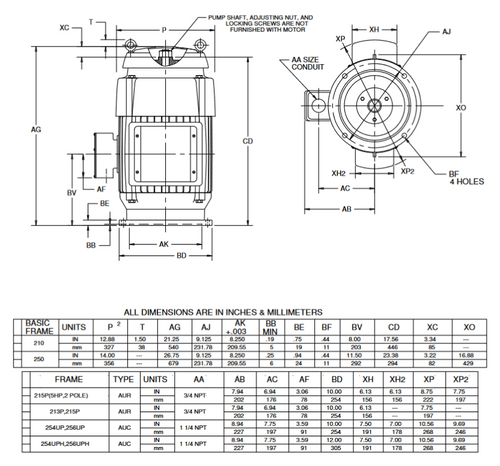

  • NEMA 215P Frame, AUR type, 10" Dia. Base
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 17 9/16", Diameter - 1" , Keyway 1/4"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. 1 Year Manufacture Warranty. 9317

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 5 HP
RPM 3600
Phase Single Phase
Frame 215P
Hertz 60 Hz
Amperage 26.0 Amps
Bearings Ball Bearings
Insulation Class Class F
!
