HS7C1KLE Nidec 7 1/2 hp 3600 RPM 230V 1-phase 254UP Frame Vertical Holloshaft Motor
HS7C1KLE Nidec 7 1/2 hp 3600 RPM 230V 1-phase 254UP Frame Vertical Holloshaft Motor
HS7C1KLE Nidec 7 1/2 hp 3600 RPM 230V 1-phase 254UP Frame Vertical Holloshaft Motor
HS7C1KLE Nidec 7 1/2 hp 3600 RPM 230V 1-phase 254UP Frame Vertical Holloshaft Motor

Nidec

HS7C1KLE Nidec 7 1/2 hp 3600 RPM 230V 1-phase 254UP Frame Vertical Holloshaft Motor

(No reviews) Write a Review
$6,047.85
$5,399.83
SKU HS7C1KLE
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/2 HP
RPM 3600
Phase Single Phase
Frame 254UP
Hertz 60 Hz
Amperage 32.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 7 1/2 HP 3600 RPM, 32.0 amps, 230V 60 Hz. Capacitor Start

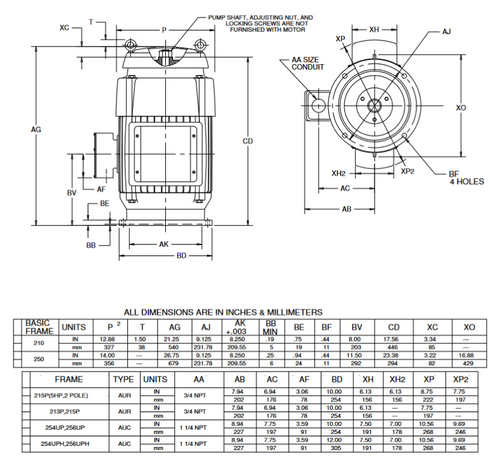

  • NEMA 254UP Frame, AUC type, 10" Dia. Base
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 23 3/8", Diameter - 1" , Keyway 1/4"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. 1 Year Manufacture Warranty. 7201

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230V
Horsepower 1/2 HP
RPM 3600
Phase Single Phase
Frame 254UP
Hertz 60 Hz
Amperage 32.0 Amps
Bearings Ball Bearings
Insulation Class Class F
!
