sale
HT7P2BLE Nidec 7-1/2 hp 1800 RPM 230/460V 3-phase H213TP Frame TEFC Vertical Holloshaft Sinewave Motor
HT7P2BLE Nidec 7-1/2 hp 1800 RPM 230/460V 3-phase H213TP Frame TEFC Vertical Holloshaft Sinewave Motor
HT7P2BLE Nidec 7-1/2 hp 1800 RPM 230/460V 3-phase H213TP Frame TEFC Vertical Holloshaft Sinewave Motor
HT7P2BLE Nidec 7-1/2 hp 1800 RPM 230/460V 3-phase H213TP Frame TEFC Vertical Holloshaft Sinewave Motor

Nidec

HT7P2BLE Nidec 7-1/2 hp 1800 RPM 230/460V 3-phase H213TP Frame TEFC Vertical Holloshaft Sinewave Motor

(No reviews) Write a Review
$3,309.70
$2,955.39
SKU HT7P2BLE
Availability Please email for availability
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 18.0/9.0 Amps
Bearings Ball Bearings
Insulation Class Class F
Adding to cart… The item has been added
Description
  • 7 1/2 HP 1800 RPM, 18.0/9.0 amps, 230/460V 60 Hz. 3 Phase

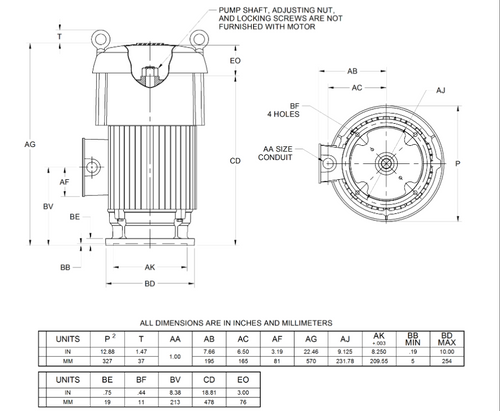

  • NEMA H213TP Frame, TUS type, 10" Dia. Base, TEFC
  • 1.15 Service Factor, Class F insulation, Thermal Protection: None
  • Non-Reversible Ratchet Rotation, Weather Protected Enclosure
  • P-Base Mounting, Ball Bearings, High Thrust
  • Coupler: Non-Reverse Ratchet (NRR), Height - 18 1/8", Diameter - 1" , Keyway 1/4"

Vertical pump motor for use on turbine, mix flow, and propeller pumps. TEFC = Totally-Enclosed Fan-Cooled, 1 Year Manufacture Warranty. FJ77

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1/2 HP
RPM 1800
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 18.0/9.0 Amps
Bearings Ball Bearings
Insulation Class Class F
!
