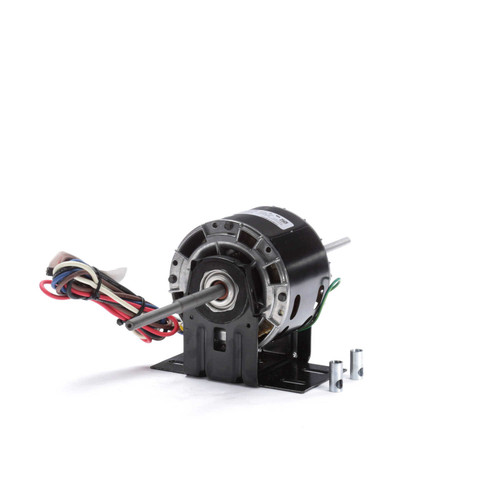

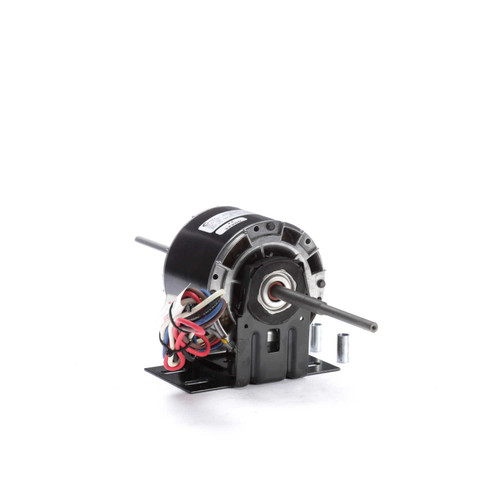

Model 638 Century Ice Cap Replacement Motor 1/10 hp, 1070 RPM, 3-Speed, 115V Century # 638

Model 638 Century Ice Cap Replacement Motor 1/10 hp, 1070 RPM, 3-Speed, 115V Century # 638

This Model 638 replacement motor is designed for Century Ice Cap applications, providing reliable performance with a 1/10 horsepower rating. It serves as a suggested replacement for models DE2E132, DE2E188, and ELB1271, ensuring compatibility and efficient operation.

Key Specifications

• Horsepower: 1/10 hp
• RPM: 1070
• Voltage: 115V
• Amperage: 0.87 amps
• Frame / Diameter: 5"
• Shaft Dimensions: 3/8" diameter x 6.5" length
• Rotation: Clockwise (CW) Lead End
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a 3-speed design and requires a 4MFD 370V capacitor (sold separately, Part #4DV) for proper operation. It has a motor case length of 3 3/4" and comes with 31" leads for easy electrical connections. The shaft length and rotation direction are optimized for direct replacement in compatible Century Ice Cap units.

Cross Reference

• DE2E132, DE2E188, ELB1271

Warranty

1 Year Manufacturer Warranty
