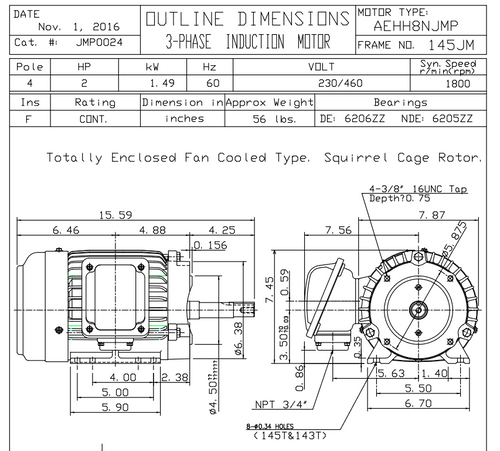

JMP0024 TECO Westinghouse 2 hp 1800 RPM 143/145JM Cast Iron Frame 230/460V TEFC Close-Coupled 3-Phase Motor

SKU:
JMP0024
Weight:
68.00 LBS
Shipping:
Calculated at Checkout
$437.70
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 2 hp 1800 RPM, 5.56/2.78 amps 230/460 Volts 60hz. Three Phase
  • NEMA 143/145JM Frame, Special Shaft
  • Cast Iron Frame, Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
