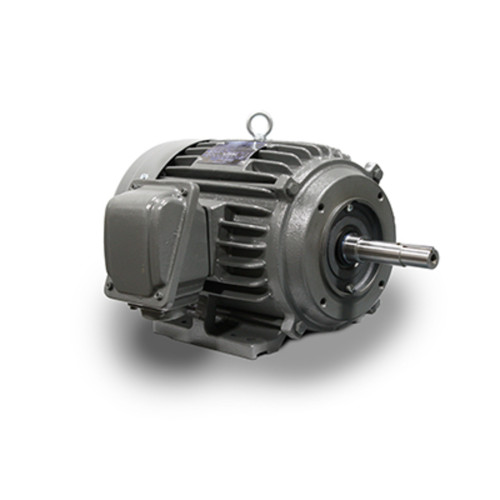

JMP0254 TECO Westinghouse 25 hp 1800 RPM 284JM Cast Iron Frame 230/460V TEFC Close-Coupled 3-Phase Motor
JMP0254 TECO Westinghouse 25 hp 1800 RPM 284JM Cast Iron Frame 230/460V TEFC Close-Coupled 3-Phase Motor
JMP0254 TECO Westinghouse 25 hp 1800 RPM 284JM Cast Iron Frame 230/460V TEFC Close-Coupled 3-Phase Motor
JMP0254 TECO Westinghouse 25 hp 1800 RPM 284JM Cast Iron Frame 230/460V TEFC Close-Coupled 3-Phase Motor

TECO WESTINGHOUSE

JMP0254 TECO Westinghouse 25 hp 1800 RPM 284JM Cast Iron Frame 230/460V TEFC Close-Coupled 3-Phase Motor

(No reviews) Write a Review
$2,057.47
SKU JMP0254
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 230
Enclosure TEFC
Hertz 60 Hz
Amperage 29.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 25 hp 1800 RPM, 58.2/29.1 amps 230/460 Volts 60hz. Three Phase
  • NEMA 284JM Frame, Special Shaft
  • Cast Iron Frame, Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors

Specifications
Voltage 230/460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 230
Enclosure TEFC
Hertz 60 Hz
Amperage 29.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Duty Inverter Duty
!
