JMP0306 TECO Westinghouse 30 hp 1200 RPM 324/326JM Cast Iron 230/460V TEFC Close-Coupled 3-Phase Motor

SKU:
JMP0306
Weight:
507.00 LBS
Shipping:
Calculated at Checkout
$3,322.17
Adding to cart… The item has been added

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 30 hp 1200 RPM, 75.0/37.5 amps 230/460 Volts 60Hz. Three Phase

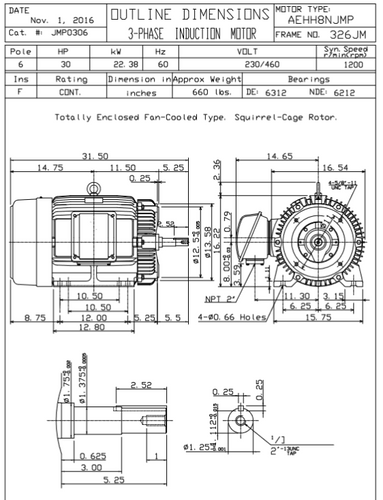

  • NEMA 324/326JM Frame, Special Shaft
  • Cast Iron Frame, Enclosure: Totally Enclosed Fan Cooled (IP54)
  • Service Factor: 1.15, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class F Insulation
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 10:1 Variable Torque, 5:1 Constant Torque
  • Motors are U.L. Recognized, CSA Approved and CE Marked
  • 1 Year Manufacture Warranty

Applications: Fans & Blowers, Pumps, Crushers, Compressors, Mixers, Conveyors
