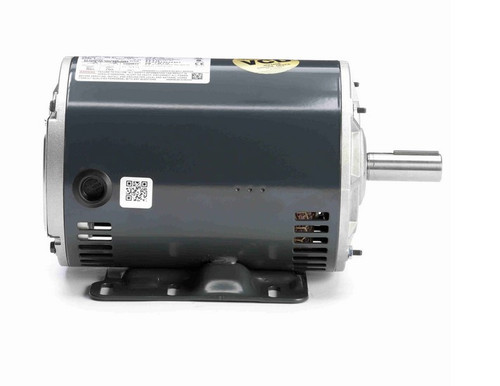

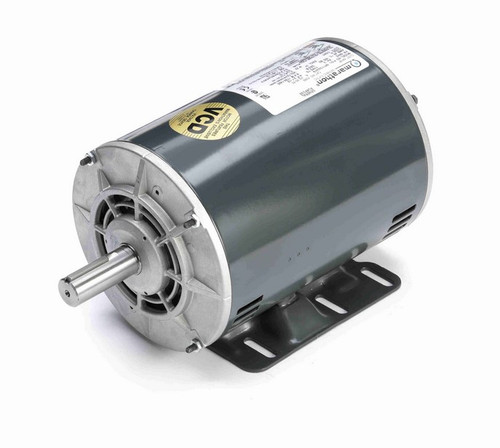

K069 Marathon 2 hp 1800 RPM 208-230/460V 3-Phase 56HZ Frame ODP (rigid base) Motor

K069 Marathon 2 hp 1800 RPM 208-230/460V 3-Phase 56HZ Frame ODP (rigid base) Motor

This general-purpose three-phase electric motor is designed for industrial applications requiring reliable performance and durability. It is suitable for replacing similar 2 hp motors with a 56H frame and open drip-proof enclosure.

Key Specifications

• Horsepower: 2 hp
• RPM: 1800
• Voltage: 208-230/460 V
• Amperage: 6.2-6.2/3.1 A
• Enclosure: Open Drip-Proof (ODP)
• Frame / Diameter: NEMA Rolled Steel 56H frame
• Shaft Dimensions: 7/8" Diameter x 1 7/8" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base for secure mounting and includes a keyed shaft for positive drive connection. It is equipped with automatic overload protection and Class B insulation for enhanced durability. Wiring diagrams are provided on the motor nameplate to assist with installation.

Warranty

3 Year Manufacturer Warranty
