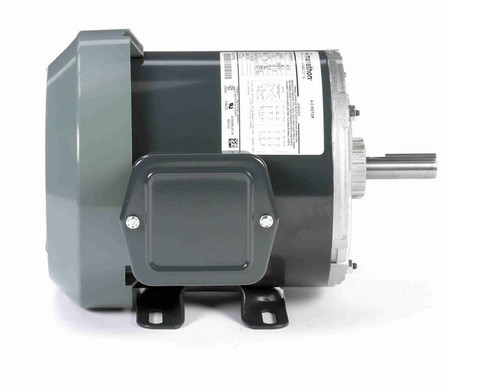

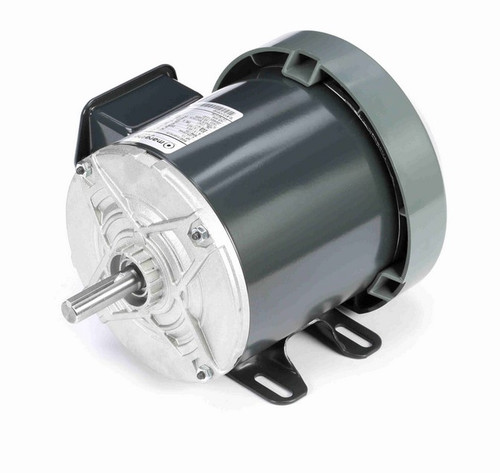

K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor
K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor
K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor
K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor
K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor
K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor
K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor
K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

Marathon

K154 Marathon 1/3 hp 208-230/460V 1800 RPM 3-Phase 56 Frame TEFC (rigid base) Motor

(No reviews) Write a Review
$397.33
$255.19
SKU MK154
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 1.6/0.8 Amps
Bearings Ball Bearings
Service Factor 1.35
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1/3 hp 1800 RPM, 1.5-1.6/0.8 amps 208-230/460 Volts 60hz. Three Phase
  • NEMA 56 frame, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.35, Thermal Overload Protection: None
  • Rigid Base, Reversible, Ball Bearings, Class A Insulation
  • 1 Year Manufacture Warranty

This is a general purpose three phase motor with a rigid base mount. Shaft has keyway. General purpose motors are for use in situations not having special requirements. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled

Marathon # 5K49FN4136
Replaces Leeson C4T17FH6C, 101079.00, C4T17FH12A, 103019.00





Specifications
Voltage 208/230/460V
Horsepower 1/3 HP
RPM 1800
Phase Three Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 1.6/0.8 Amps
Bearings Ball Bearings
Service Factor 1.35
Mounting Rigid Base
!
