Klauber RV Slide Out Motor # K01176A100

Klauber RV Slide Out Motor # K01176A100

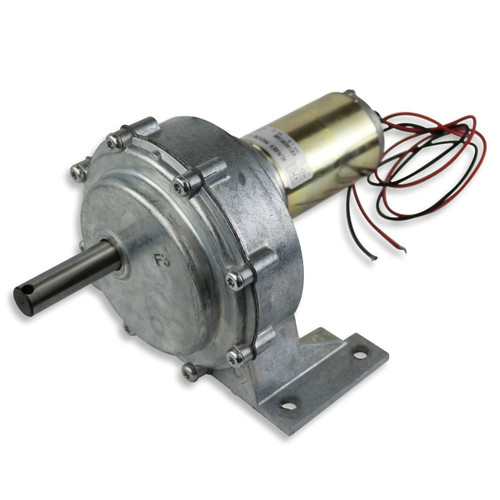

This Klauber RV Slide Out Motor is a 12V DC permanent magnet motor designed to replace models K01176-A100, K01176B100, and compatible with Newmar part numbers 24807 and 24806. It is engineered for reliable operation in RV slide-out mechanisms requiring high torque at low speeds.

Key Specifications

• Voltage: 12 Volts DC
• Amperage: 6 Amps
• RPM: 2 RPM
• Gear Ratio: 1554:1
• Torque: 1100 in/lbs run torque

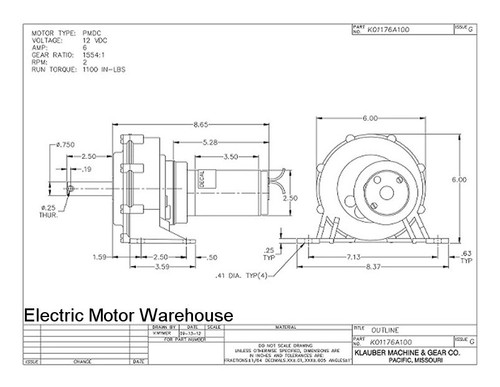

• Shaft Dimensions: 3/4" diameter x 2 1/2" length
• Rotation: Reversible

Product Features & Fitment

The motor features a high gear reduction ratio to provide substantial torque for smooth slide-out extension and retraction. Its reversible rotation allows for flexible installation depending on the RV slide-out configuration. The shaft size and length are designed to fit standard mounting setups for direct replacement of listed part numbers.
