Klauber RV Slide Out Motor (Replaces 521769S) # K01265E600

Klauber RV Slide Out Motor (Replaces 521769S) # K01265E600

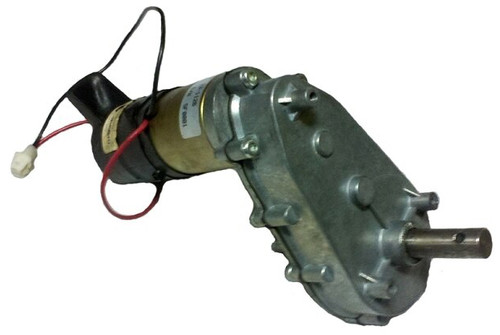

This Klauber RV Slide Out Motor is designed as a direct replacement for part number 521769S, providing reliable operation for RV slide-out mechanisms. It is engineered for 12V DC systems and delivers consistent torque and speed for smooth extension and retraction.

Key Specifications

• Amperage: 9.0 AMPS
• RPM: 10 RPM
• Voltage: 12 DC
• Gear Ratio: 300:1
• Run Torque: 400 in-lbs.

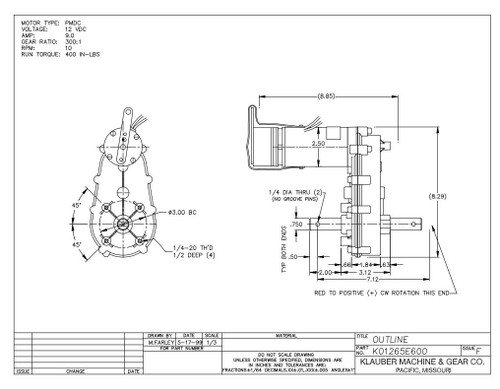

• Shaft Dimensions: Double shaft, 3/4" diameter x 2" length with 1/4" cross-hole (no key-way)

Product Features & Fitment

This motor replaces several cross-reference numbers including 532049, 13-1106, 13-1113, K01265C600, K01265-E600, and K01265E600. Note that this replacement motor does not include separate brake wires. Some listed numbers may refer to motor-only versions; it is important to verify the gear base compatibility to ensure proper fitment with your specific model.

Cross Reference

• S: 532049, 13-1106, 13-1113, K01265C600, K01265-E600, K01265E600
