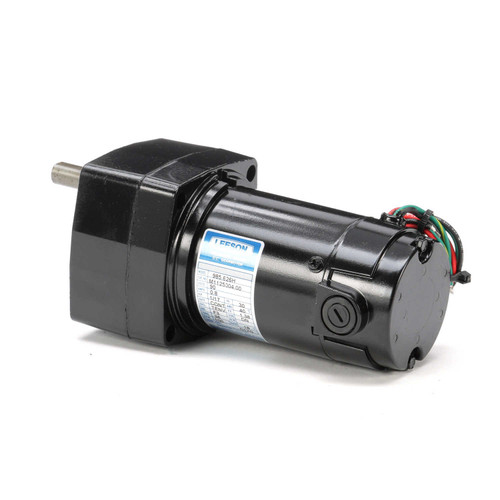

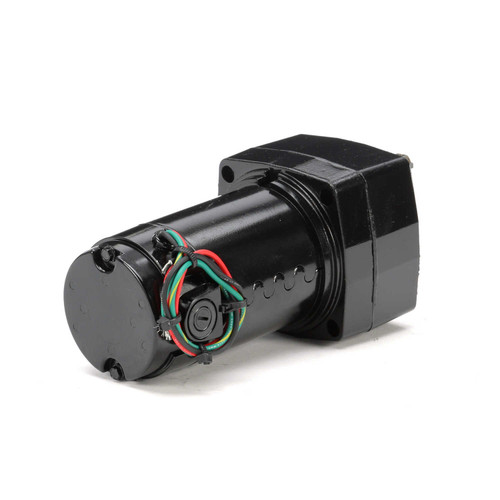

M1125004.00 Leeson | Parallel Shaft 1/17 hp, 100 RPM 90 Volts DC TENV Electric Gear Motor

M1125004.00 Leeson Parallel Shaft 1/17 hp, 100 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/17 hp output and 100 RPM speed, designed for applications requiring precise, low-speed torque. It serves as a suitable replacement for Baldor GPP12503, Bison 011-190-0019, and Bodine 0159 motors, ensuring compatibility across various industrial setups.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 100
• Voltage: 90 Volts DC
• Amperage: 0.80 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 1/2" diameter x 1" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings with needle bearings on output shafts

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. Hardened steel shafts with needle bearings provide high load capacity and durability. Optional accessories include an "L" mounting bracket (SKU M1760003) and a conduit box (SKU M1760021) for flexible installation. This motor is compatible with Leeson speed controls 174307 and 174308.

Cross Reference

• Baldor GPP12503, Bison 011-190-0019, Bodine 0159 - Please double check the specs to make sure it will work for your application

Warranty

1 Year Manufacturer Warranty
