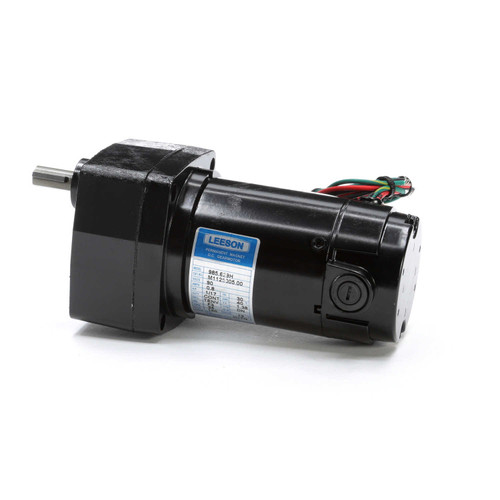

M1125005.00 Leeson | Parallel Shaft 1/17 hp, 150 RPM 90 Volts DC TENV Electric Gear Motor

M1125005.00 Leeson Parallel Shaft 1/17 hp, 150 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/17 horsepower rating and 150 RPM speed, designed for applications requiring precise low-speed torque. It is a direct replacement option suitable for various industrial machinery needing a compact, durable DC motor solution.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 150
• Voltage: 90 Volts DC
• Amperage: 0.80 amps
• Enclosure: TENV (Totally Enclosed Non Ventilated)
• Shaft Dimensions: 1/2" diameter x 1" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. It uses permanent semi-fluid grease lubrication to minimize leakage risk, and hardened steel output shafts with needle bearings support high load capacities.

Optional accessories include an "L" mounting bracket (SKU M1760003) and a conduit box (SKU M1760021) to facilitate installation. This motor is compatible with Leeson speed controls models 174307 and 174308, enhancing its versatility in various control systems.

Warranty

1 Year Manufacturer Warranty
