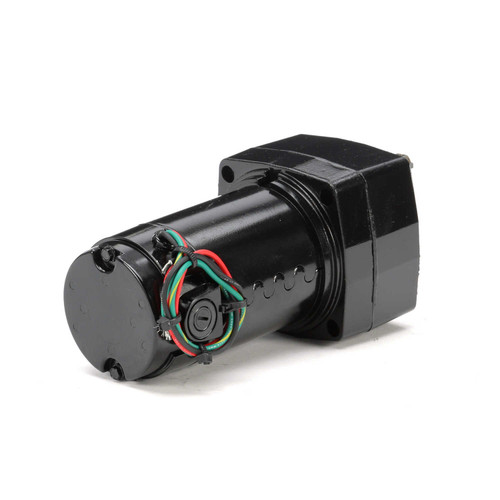

M1125002.00 Leeson | Parallel Shaft 1/17 hp, 30 RPM 90 Volts DC TENV Electric Gear Motor

M1125002.00 Leeson Parallel Shaft 1/17 hp, 30 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable low-speed torque for industrial applications requiring precise motion control. It is designed to replace or upgrade existing parallel shaft gear motors, offering a durable and efficient solution for machinery requiring 30 RPM output at 1/17 horsepower.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 30
• Voltage: 90 Volts DC
• Amperage: 0.80 amps
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Shaft Dimensions: 1/2" diameter x 1" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This gear motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. It uses permanent semi-fluid grease lubrication to minimize leakage and needle bearings on the output shaft for high load capacity. The hardened steel shaft is designed for durability under heavy use.

Optional mounting accessories include an "L" bracket (SKU M1760003) and a conduit box (SKU M1760021) to facilitate installation. The motor is compatible with Leeson speed controls 174307 and 174308 for enhanced speed regulation.

Warranty

1 Year Manufacturer Warranty
