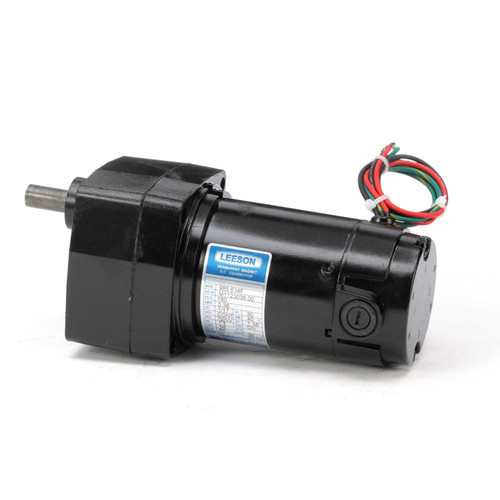

M1125036.00 Leeson | Parallel Shaft 1/17 hp, 60 RPM 180 Volts DC TENV Electric Gear Motor

M1125036.00 Leeson Parallel Shaft 1/17 hp, 60 RPM 180 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/17 hp rating and 60 RPM speed, designed for applications requiring precise, low-speed torque. It is a suitable replacement for the Baldor GPP233121 motor, ideal for industrial machinery and equipment requiring a compact, durable gear motor solution.

Key Specifications

• Horsepower: 1/17 hp
• RPM: 60
• Voltage: 180 Volts DC
• Amperage: 0.36 amps
• Enclosure: TENV (Totally Enclosed Non-Ventilated)

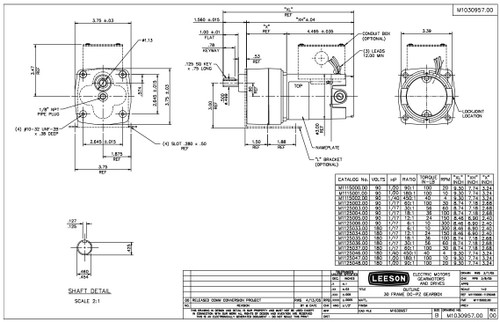

• Shaft Dimensions: 1/2" diameter x 1" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings with needle bearings on output shafts

Product Features & Fitment

This gear motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. The hardened steel output shaft is supported by needle bearings for high load capacity. Optional accessories include an "L" mounting bracket (M1760003) and a conduit box (M1760021). It is compatible with Leeson speed controls 174307 and 174308. Please verify shaft and mounting compatibility to ensure proper fitment with existing equipment.

Cross Reference

• Baldor GPP233121 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

1 Year Manufacturer Warranty
