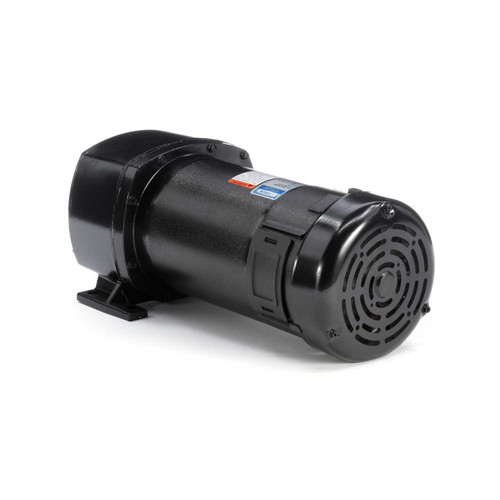

Leeson Parallel Shaft 1/2 hp, 135 RPM 90VDC Electric Gear Motor # 108712

SKU:
108712
Manufacturer
Leeson
Availability:
Currently out of stock (3.19.20)
Weight:
43.00 LBS
Shipping:
Free Shipping
$708.50
  • 1/2 hp, 135 RPM, 5.0 amps, 90 Volts DC
  • Gear Ratio = 13 Torque
  • 210 inch pounds
  • Over Hung Pounds = 525
  • TEFC - Totally Enclosed Fan Cooled
  • Class F Insulation; Service Factor 1.0
  • Shaft 3/4" x 1.5"; Rotation = Reversible
  • Keyed Shaft, Ball Bearings
  • One year manufacture warranty

Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Can use with Leeson speed control 174307, 174308.

C4D17FZ28C, 108712.00
