107032.00 Leeson | Parallel Shaft 1/2 hp, 22 RPM 208-230/460 Electric Gear Motor

107032.00 Leeson Parallel Shaft 1/2 hp, 22 RPM 208-230/460 Electric Gear Motor

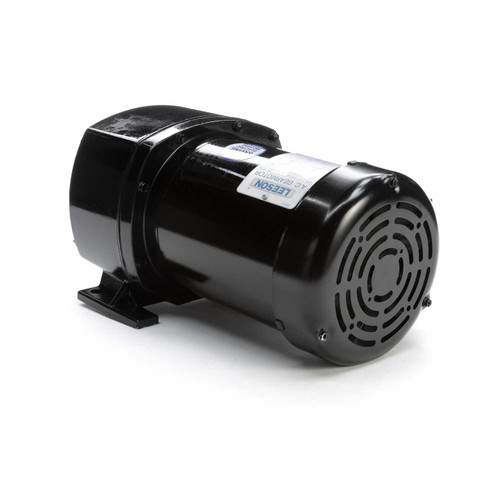

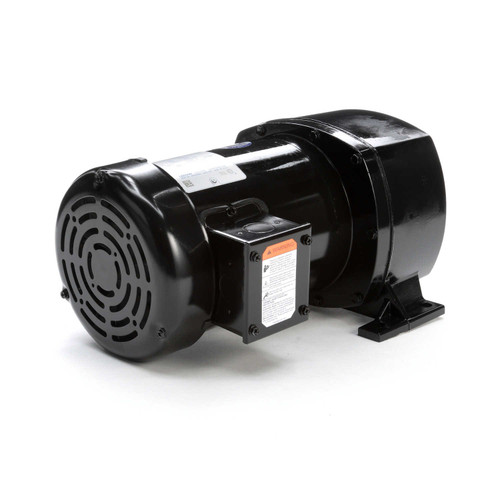

This Leeson electric gear motor delivers reliable performance with a 1/2 horsepower parallel shaft design. Ideal for industrial applications requiring low-speed, high-torque operation, it replaces similar 3-phase motors with a 79:1 gear ratio.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 22
• Voltage: 208-230/460 V, 60 Hz
• Amperage: 2.0/1.0 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a robust parallel shaft with a 79:1 gear ratio, providing 1105 inch-pounds of torque and an overhung load capacity of 700 pounds. It is equipped with Class F insulation and a service factor of 1.15 for enhanced durability. The motor’s reversible rotation and keyed shaft facilitate flexible installation in various industrial setups.
