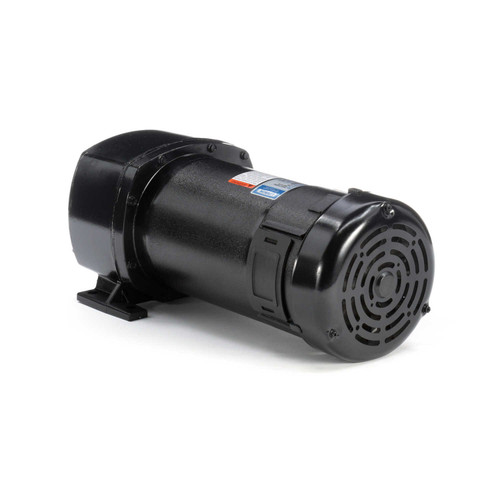

108710.00 Leeson | Parallel Shaft 1/2 hp, 60 RPM 90 Volts DC TEFC Electric Gear Motor

108710.00 Leeson Parallel Shaft 1/2 hp, 60 RPM 90 Volts DC TEFC Electric Gear Motor

This Leeson electric gear motor delivers reliable 1/2 hp power with a low-speed output of 60 RPM, designed for industrial applications requiring precise torque and reversible rotation. It is a direct replacement solution compatible with Leeson speed controls 174307 and 174308.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 60
• Voltage: 90 Volts DC
• Amperage: 5.0 amps
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Shaft Dimensions: 3/4" diameter x 1.5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. It uses permanent semi-fluid grease lubrication to minimize leakage risks, and hardened steel output shafts with needle bearings provide high load capacity and durability. The keyed shaft design facilitates secure mounting and easy installation.

Warranty

1 Year Manufacturer Warranty
