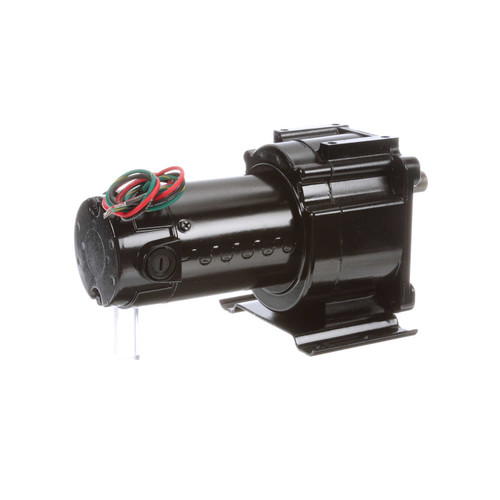

M1115029.00 Leeson | Parallel Shaft 1/20 hp, 109 RPM 90 Volts DC TENV Electric Gear Motor

M1115029.00 Leeson Parallel Shaft 1/20 hp, 109 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/20 hp output and 109 RPM speed, designed for applications requiring precise speed control and durable operation. It features a parallel shaft configuration and is suitable for replacing or upgrading existing DC gear motors in industrial and HVAC equipment.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 109
• Voltage: 90 Volts DC
• Amperage: 0.54 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor incorporates precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. It uses permanent semi-fluid grease lubrication to minimize leakage risk. The output shaft is keyed, made of hardened steel, and supported by needle bearings for high load capacity. This motor is compatible with Leeson speed controls (models 174307 and 174308) and offers an optional conduit box (part # M1760021) for flexible installation.

Warranty

• Dimensional Drawing
