M1115024.00 Leeson Parallel Shaft 1/20 hp, 5 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson parallel shaft gear motor delivers reliable low-speed, high-torque performance for industrial applications requiring precise motion control. It is designed to replace or upgrade existing motors with similar specifications, suitable for use with Leeson speed controls.

Key Specifications

• Horsepower: 1/20 hp
• RPM: 5
• Voltage: 90 Volts DC
• Amperage: 0.56 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 5/8" diameter x 1.5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. It is permanently lubricated with semi-fluid grease to minimize leakage risk. Hardened steel output shafts incorporate needle bearings for high load capacity and durability.

This unit includes a keyed shaft and is compatible with Leeson speed control models 174307 and 174308. An optional conduit box (part # M1760021) is available to facilitate electrical connections.

Warranty

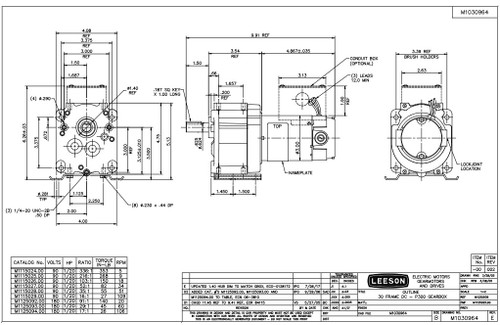

• Dimensional Drawing
