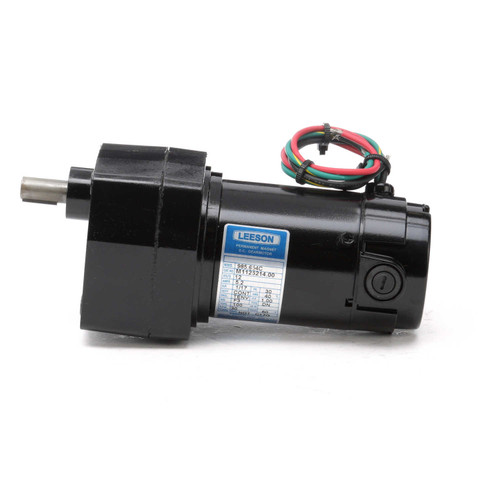

M1125214.00 Leeson | Parallel Shaft 1/21 hp, 30 RPM 12VDC Electric Gear Motor

M1125214.00 Leeson Parallel Shaft 1/21 hp, 30 RPM 12VDC Electric Gear Motor

This Leeson electric gear motor delivers reliable low-speed torque for industrial applications requiring precise motion control. It is designed to replace similar parallel shaft gear motors and is suitable for use with Leeson speed controls.

Key Specifications

• Horsepower: 1/21 hp
• RPM: 30
• Voltage: 12 VDC
• Amperage: 5.2 amps
• Enclosure: TENV (Totally Enclosed Non Ventilated)
• Shaft Dimensions: 1/2" diameter x 1" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings with needle bearings on output shafts

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. Hardened steel shafts with needle bearings support high load capacities. Optional mounting accessories include an "L" bracket (M1760003) and a conduit box (M1760021). This motor is compatible with Leeson speed controls 174307 and 174308.

Warranty

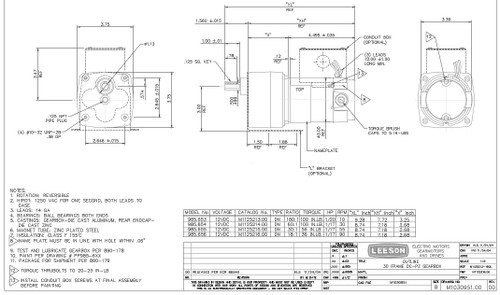

• Dimensional Drawing
