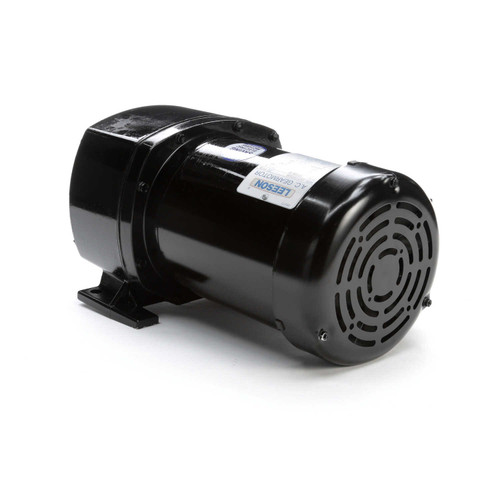

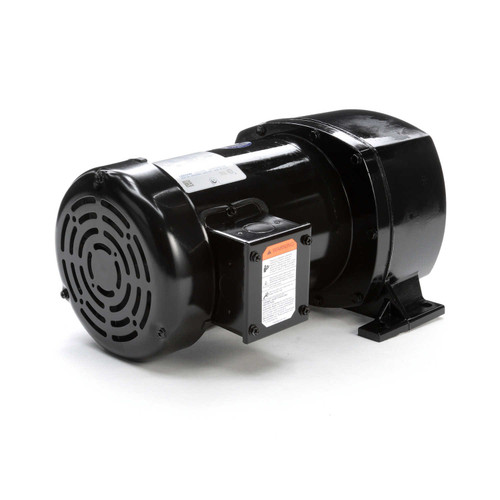

107026.00 Leeson | Parallel Shaft 1/3 hp, 26 RPM 208-230/460 Electric Gear Motor

107026.00 Leeson Parallel Shaft 1/3 hp, 26 RPM 208-230/460 Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/3 horsepower rating and a low-speed output of 26 RPM. Designed for industrial applications requiring precise torque and reversible rotation, it is a direct replacement for similar parallel shaft gear motors.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 26
• Voltage: 208-230/460 V, 60 Hz, Three Phase
• Amperage: 1.6 / 0.80 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Shaft Dimensions: 3/4" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a gear ratio of 66 and delivers a torque of 752 inch-pounds, suitable for heavy-duty applications with an overhung load capacity of 650 pounds. It is equipped with Class F insulation and a service factor of 1.15, ensuring durability under continuous operation. Installation requires no overload protection as it is not included.
