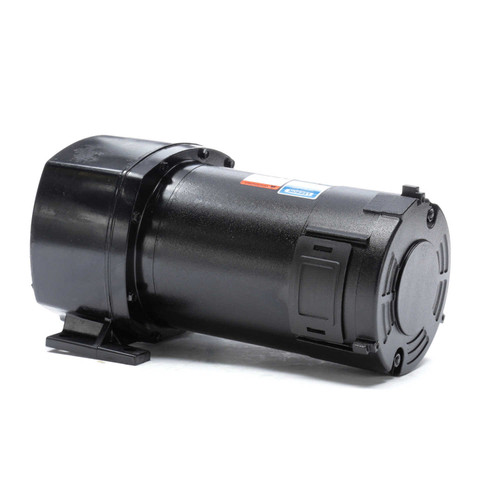

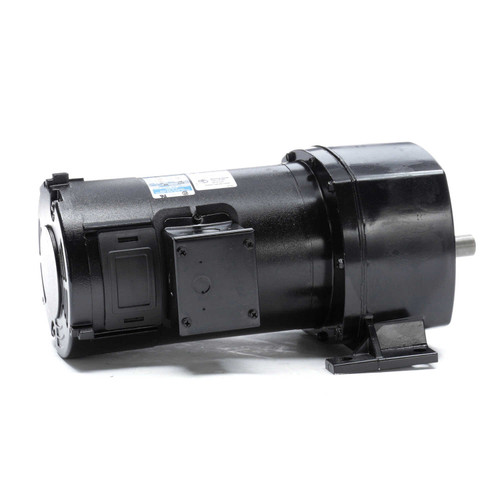

108701.00 Leeson Parallel Shaft 1/4 hp, 12 RPM 90 Volts DC TENV Electric Gear Motor
This Leeson electric gear motor delivers reliable performance with a 1/4 horsepower rating and a low-speed output of 12 RPM. Designed for applications requiring precise torque and reversible rotation, it is a direct replacement for similar parallel shaft gear motors in industrial and HVAC equipment.
Key Specifications
- Horsepower: 1/4 hp
- RPM: 12
- Voltage: 90 Volts DC
- Amperage: 2.7 amps
- Enclosure: Totally Enclosed Non Ventilated (TENV)

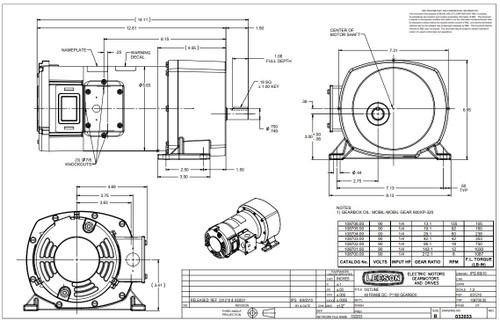

- Shaft Dimensions: 3/4" diameter x 1.5" length
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor features precision-machined in-line steel gears, starting with a steel helical first stage followed by spur-type gears for efficient power transmission. It is lubricated with permanent semi-fluid grease to minimize leakage risk. The output shafts include needle bearings to support high load capacities, and the hardened steel keyed shaft ensures secure coupling. Compatible with Leeson speed controls models 174307 and 174308 for variable speed applications.
Warranty
1 Year Manufacturer Warranty
