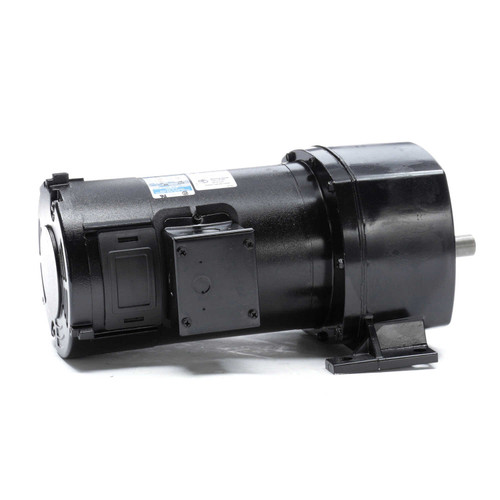

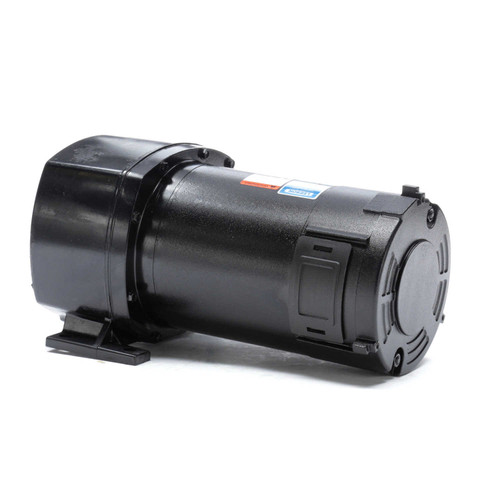

108702.00 Leeson | Parallel Shaft 1/4 hp, 18 RPM 90 Volts DC TENV Electric Gear Motor

108702.00 Leeson Parallel Shaft 1/4 hp, 18 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable 1/4 horsepower performance with a low-speed output of 18 RPM. Designed for applications requiring precise torque and reversible rotation, it is a direct replacement for compatible parallel shaft motor setups.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 18
• Voltage: 90 Volts DC
• Amperage: 2.7 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 3/4" diameter x 1.5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features precision-machined in-line steel gears, starting with a steel helical first stage followed by spur-type gears, ensuring smooth and efficient power transmission. It is lubricated with permanent semi-fluid grease to minimize leakage risks. The hardened steel output shaft includes needle bearings to support high load capacities. Compatible with Leeson speed controls models 174307 and 174308 for enhanced speed regulation.

Warranty

1 Year Manufacturer Warranty
