M1135115.00 Leeson | Parallel Shaft 1/4 hp, 27 RPM 90 Volts DC TENV Electric Gear Motor

M1135115.00 Leeson Parallel Shaft 1/4 hp, 27 RPM 90 Volts DC TENV Electric Gear Motor

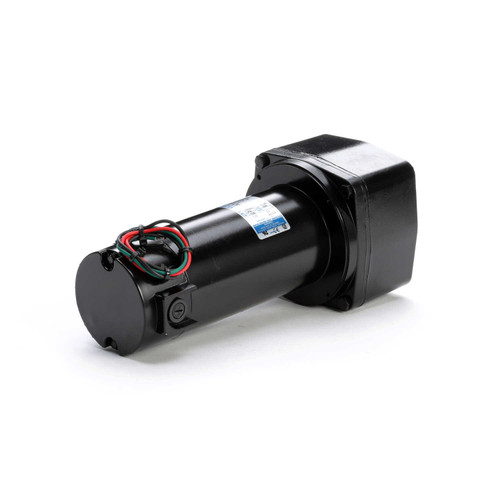

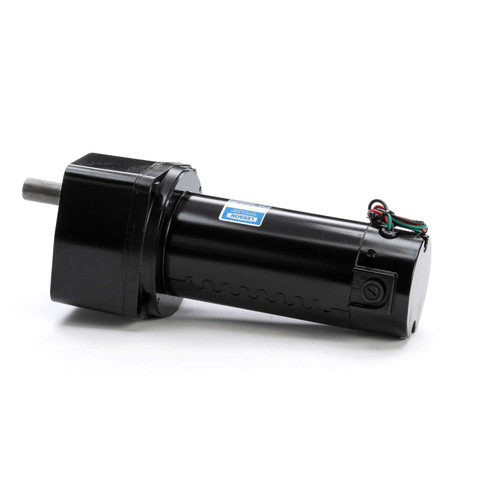

This Leeson parallel shaft gear motor delivers 1/4 horsepower at 27 RPM with a 90 Volt DC power supply. It is a suitable replacement for Baldor GPP7461 and compatible with Leeson speed controls 174307 and 174308, ideal for industrial applications requiring precise low-speed torque.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 27
• Voltage: 90 Volts DC
• Amperage: 1.50 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)

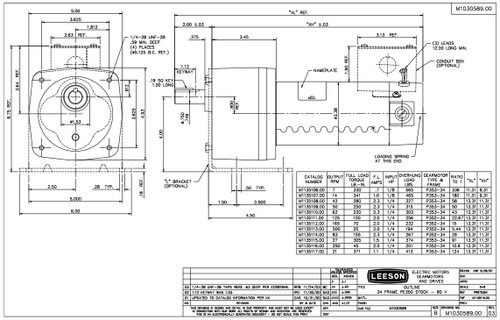

• Shaft Dimensions: 3/4" diameter x 1.625" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings with needle bearings on output shafts for high load capacity

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. Shafts are hardened steel designed for durability under high torque loads (305 inch-pounds) and overhung load capacity of 374 pounds. An optional conduit box (part # M1760007) is available for enhanced installation flexibility. Please verify shaft and mounting compatibility to ensure proper interchange with existing equipment.

Cross Reference

• Baldor GPP7461 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

1 Year Manufacturer Warranty
