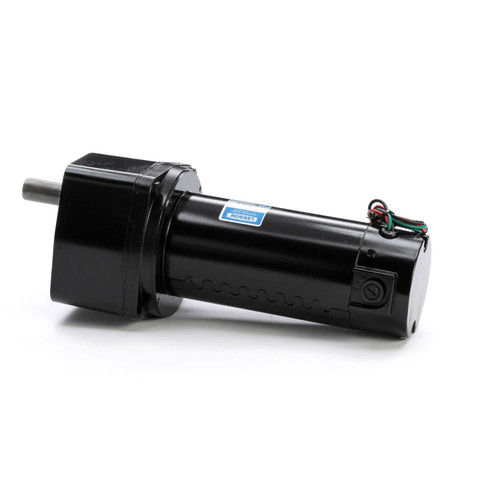

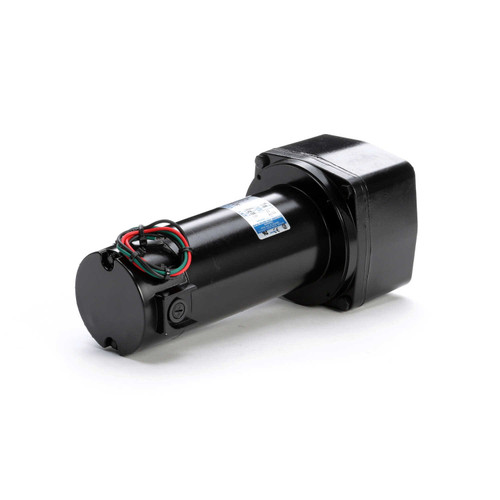

M1135143.00 Leeson | Parallel Shaft 1/4 hp, 42 RPM 180 Volts DC TENV Electric Gear Motor

M1135143.00 Leeson Parallel Shaft 1/4 hp, 42 RPM 180 Volts DC TENV Electric Gear Motor

This Leeson parallel shaft gear motor delivers 1/4 horsepower at 42 RPM with a 180 Volt DC power supply. It serves as a suitable replacement for Baldor GPP7476 and is designed for applications requiring precise speed control and durable performance.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 42
• Voltage: 180 Volts DC
• Amperage: 1.20 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 3/4" diameter x 1.625" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings with needle bearings on output shafts

Product Features & Fitment

This motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. The hardened steel shafts with needle bearings support high load capacities. An optional conduit box (Part # M1760007) is available for enhanced installation flexibility. It is compatible with Leeson speed controls 174307 and 174308. Please verify existing motor specifications, shaft, and mounting to ensure proper interchangeability.

Cross Reference

• Baldor GPP7476 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

1 Year Manufacturer Warranty
