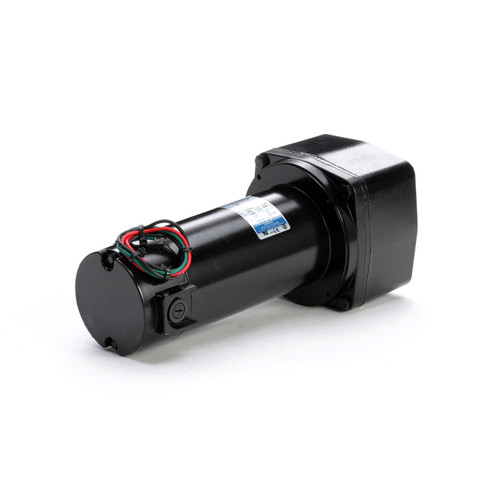

M1135108.00 Leeson | Parallel Shaft 1/4 hp, 42 RPM 90 Volts DC TENV Electric Gear Motor

Leeson Parallel Shaft 1/4 hp, 42 RPM 90 Volts DC TENV Electric Gear Motor (M1135108.00)

This Leeson electric gear motor delivers 1/4 horsepower at 42 RPM with a 90 Volt DC power supply. Designed as a suitable replacement for Baldor GPP7454, Bison 011-348-7041, and Bodine 5046 motors, it is ideal for industrial applications requiring precise, low-speed torque.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 42
• Voltage: 90 Volts DC
• Amperage: 2.30 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 3/4" diameter x 1.625" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. The hardened steel output shaft is keyed and supported by needle bearings for high load capacity. An optional conduit box (part # M1760007) is available for enhanced installation flexibility. Compatible with Leeson speed controls 174307 and 174308. Users should verify shaft and mounting compatibility to ensure proper interchange with existing equipment.

Cross Reference

• Baldor GPP7454, Bison 011-348-7041, Bodine 5046 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

1 Year Manufacturer Warranty
