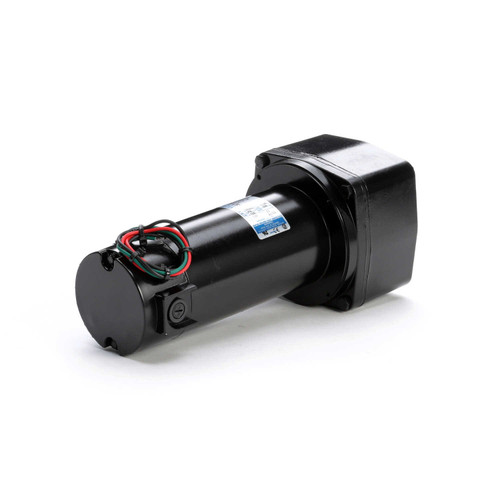

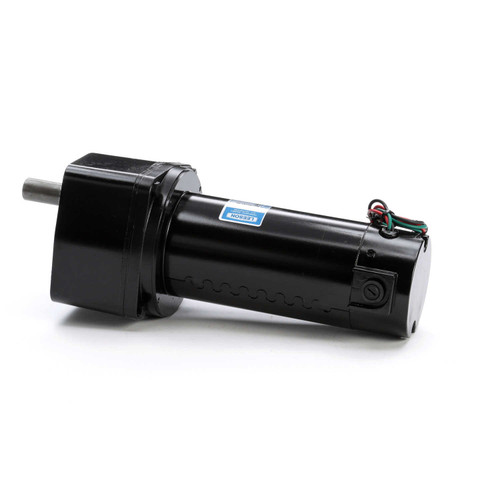

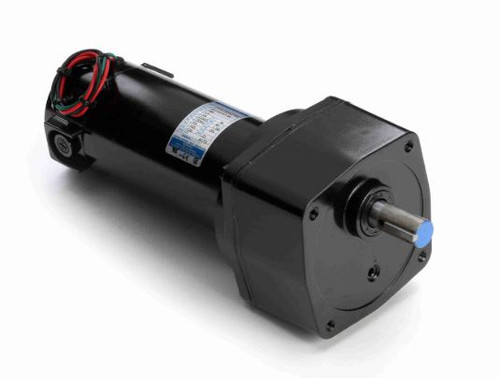

M1135150.00 Leeson | Parallel Shaft 1/4 hp, 500 RPM 180 Volts DC TENV Electric Gear Motor

M1135150.00 Leeson Parallel Shaft 1/4 hp, 500 RPM 180 Volts DC TENV Electric Gear Motor

This Leeson parallel shaft gear motor delivers 1/4 horsepower at 500 RPM with a 5:1 gear ratio, designed for industrial applications requiring reliable torque and reversible operation. It serves as a suitable replacement for Baldor GPP7470 and is compatible with Leeson speed controls 174307 and 174308.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 500
• Voltage: 180 Volts DC
• Amperage: 1.0 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 3/4" diameter x 1.625" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings with needle bearings on output shafts

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. Hardened steel shafts with needle bearings provide high load capacity. An optional conduit box (part # M1760007) is available for installation flexibility. Please verify shaft and mounting compatibility to ensure interchangeability with existing equipment.

Cross Reference

• Baldor GPP7470 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

1 Year Manufacturer Warranty
