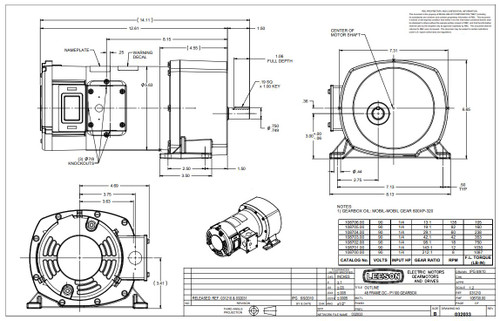

108700.00 Leeson | Parallel Shaft 1/4 hp, 8 RPM 90 Volts DC TENV Electric Gear Motor

108700.00 Leeson | Parallel Shaft 1/4 hp, 8 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson parallel shaft gear motor delivers reliable 1/4 horsepower performance at 8 RPM, designed for applications requiring precise low-speed torque. It is a direct replacement motor suitable for industrial machinery requiring a 90 Volt DC power supply and reversible rotation.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 8
• Voltage: 90 Volts DC
• Amperage: 2.7 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 3/4" diameter x 1.5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, starting with a steel helical first stage followed by spur-type gears for efficient power transmission. It uses permanent semi-fluid grease lubrication to minimize leakage risk. Hardened steel output shafts are supported by needle bearings, enabling high load capacity and durability. The keyed shaft design facilitates secure mounting and alignment in various industrial setups.

Warranty

1 Year Manufacturer Warranty
