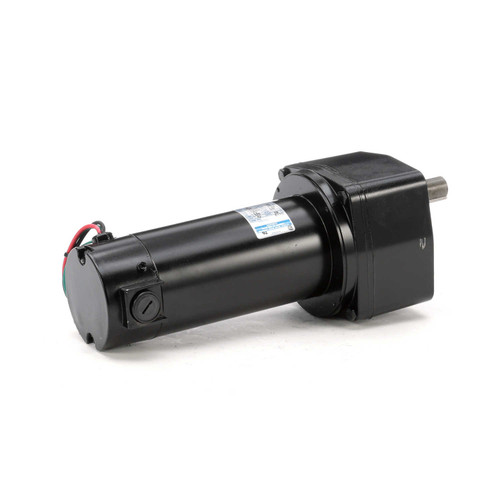

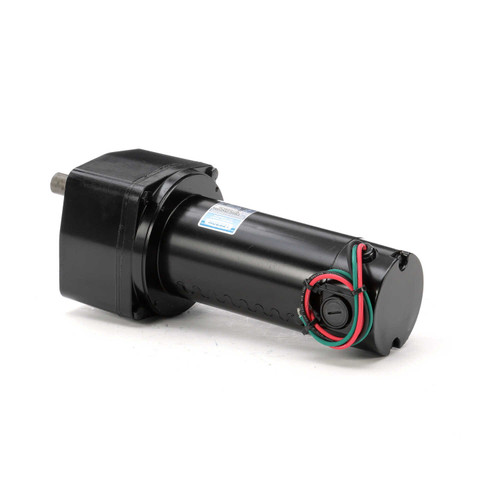

M1135246.00 Leeson Parallel Shaft 1/4 hp, 83 RPM 12VDC Electric Gear Motor
This Leeson parallel shaft gear motor delivers reliable 1/4 horsepower performance at 83 RPM with 12V DC input. Designed for industrial applications requiring precise speed control and high torque, it is compatible with Leeson speed control model 175291.
Key Specifications
- Horsepower: 1/4 hp
- RPM: 83
- Voltage: 12 VDC
- Amperage: 21 amps
- Enclosure: TENV (Totally Enclosed Non-Ventilated)
- Shaft Dimensions: 3/4" diameter x 1.625" length, keyed
- Rotation: Reversible
- Bearings: Ball bearings with needle bearings on output shafts
Product Features & Fitment
The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. Hardened steel shafts and needle bearings on output shafts provide high load capacity and durability. An optional conduit box (part # M1760007) is available for enhanced installation flexibility.
