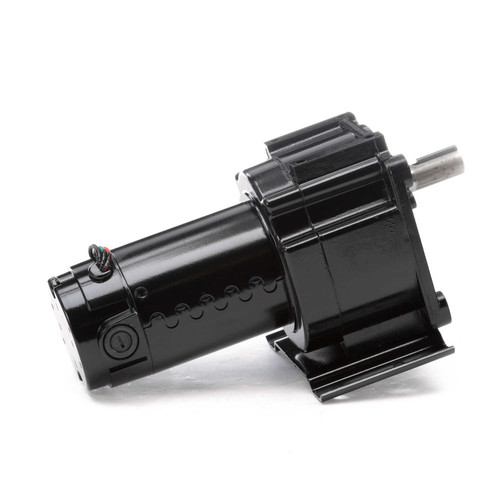

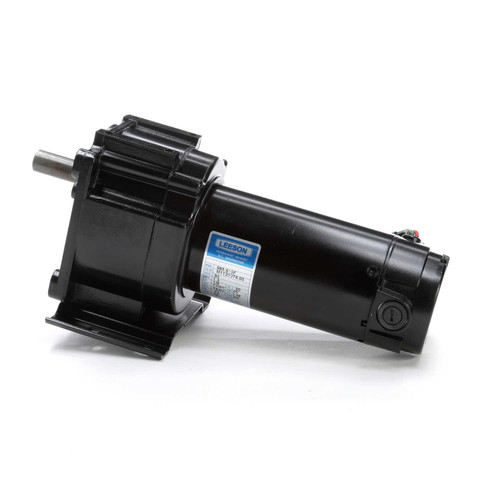

M1125074.00 Leeson | Parallel Shaft 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor

• 1/8 hp, 167 RPM, 1.3 amps, 90 Volts DC
• Gear Ratio = 11
• Torque 43 inch pounds
• Over Hung Pounds = 197
• Shaft 5/8" x 1.5"; Rotation = Reversible
• TENV - Totally Enclosed Non Ventilated
• Class F Insulation; Service Factor 1.0
• Optional conduit box available
• Keyed Shaft, Ball Bearings
• One Year Manufacture Warranty.

Optional Conduit Box # M1760021 is available. Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage.Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Can use with Leeson speed control 174307, 174308.

985.616F, M1125074.00
