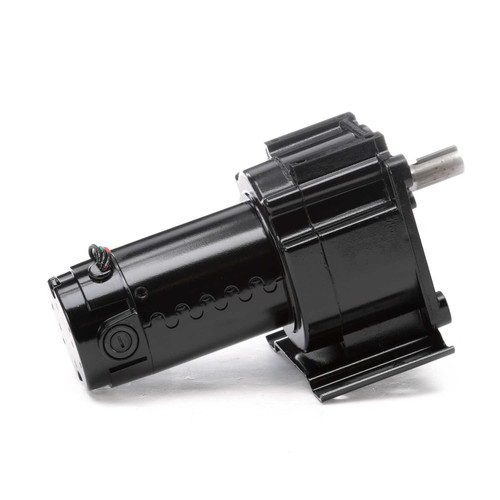

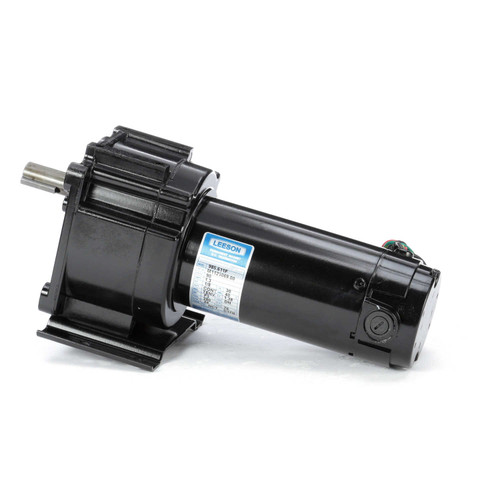

M1125069.00 Leeson | Parallel Shaft 1/8 hp, 24 RPM 90 Volts DC TENV Electric Gear Motor

M1125069.00 Leeson Parallel Shaft 1/8 hp, 24 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/8 horsepower output and a low-speed 24 RPM operation, ideal for industrial applications requiring precise torque and controlled speed. It is designed to replace or upgrade existing parallel shaft motor setups in machinery and equipment.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 24
• Voltage: 90 Volts DC
• Amperage: 1.3 amps
• Enclosure: TENV (Totally Enclosed Non-Ventilated)

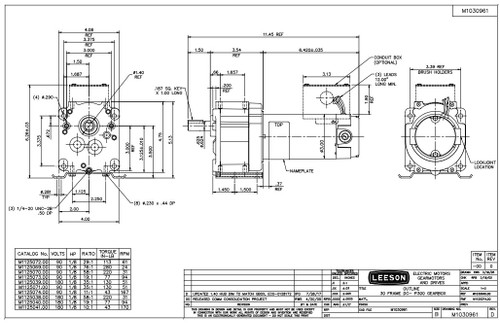

• Shaft Dimensions: 5/8" diameter x 1.5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. The output shaft is equipped with needle bearings for high load capacity and is made from hardened steel for durability. Lubrication is provided by permanent semi-fluid grease to minimize leakage risks.

The motor includes a keyed shaft and can be paired with Leeson speed controls (models 174307 and 174308) for variable speed applications. An optional conduit box (part # M1760021) is available to facilitate wiring and installation.

Warranty

1 Year Manufacturer Warranty
