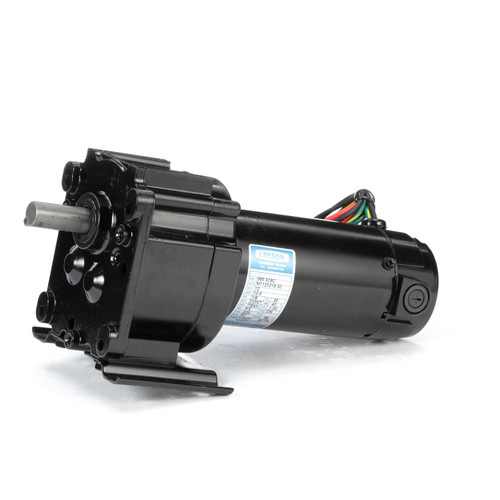

M1125218.00 Leeson | Parallel Shaft 1/8 hp, 31 RPM 12VDC Electric Gear Motor

M1125218.00 Leeson Parallel Shaft 1/8 hp, 31 RPM 12VDC Electric Gear Motor

This Leeson parallel shaft gear motor delivers reliable 1/8 horsepower performance at 31 RPM with 12V DC power input. Designed for industrial applications requiring precise, low-speed torque, it serves as a direct replacement for compatible Leeson models.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 31
• Voltage: 12 VDC
• Amperage: 10.6 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Shaft Dimensions: 5/8" diameter x 1.5" length, keyed
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. It is permanently lubricated with semi-fluid grease to minimize leakage risk. Hardened steel output shafts incorporate needle bearings to support high load capacities.

This motor is compatible with Leeson speed control model 175290 and offers an optional conduit box (part # M1760021) for enhanced installation flexibility.

Warranty

• Dimensional Drawing
