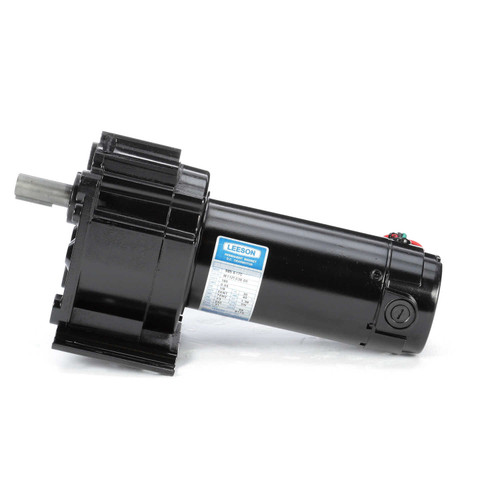

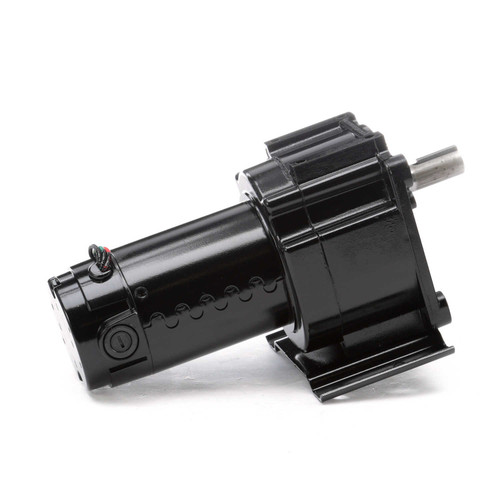

M1125038.00 Leeson | Parallel Shaft 1/8 hp, 31 RPM 180 Volts DC TENV Electric Gear Motor

SKU:
M1125038
Weight:
14.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $1,419.00
Now: $723.69
Adding to cart… The item has been added
  • 1/8 hp, 31 RPM, .66 amps, 180 Volts DC
  • Gear Ratio = 58
  • Torque 220 inch pounds
  • Over Hung Pounds = 327
  • Shaft 5/8" x 1.5"; Rotation = Reversible
  • TENV - Totally Enclosed Non Ventilated
  • Class F Insulation; Service Factor 1.0
  • Optional conduit box available
  • Keyed Shaft, Ball Bearings
  • One Year Manufacture Warranty

Optional Conduit Box # M1760021 is available. Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage.Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Can use with Leeson speed control 174307, 174308.

985.617C, M1125038.00
