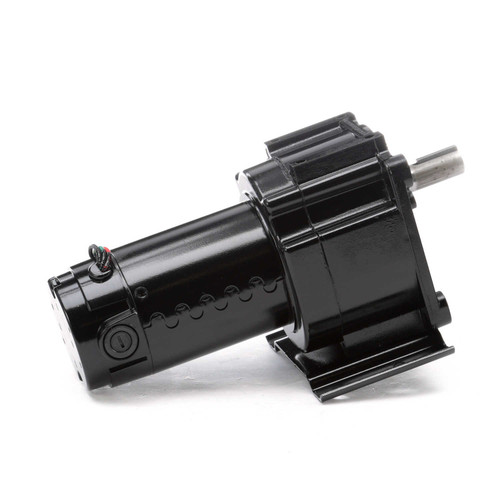

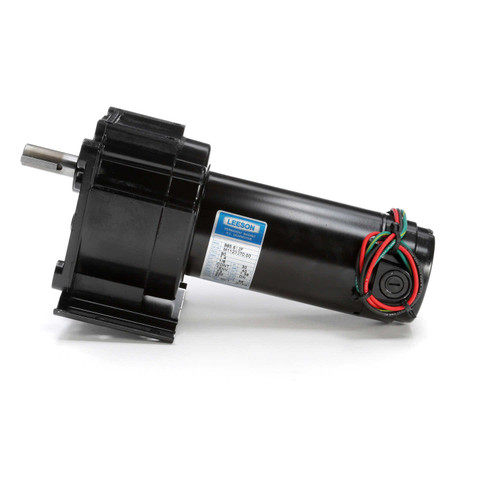

M1125070.00 Leeson | Parallel Shaft 1/8 hp, 31 RPM 90 Volts DC TENV Electric Gear Motor

M1125070.00 Leeson Parallel Shaft 1/8 hp, 31 RPM 90 Volts DC TENV Electric Gear Motor

This Leeson electric gear motor delivers reliable performance with a 1/8 hp output and 31 RPM speed, designed for applications requiring precise low-speed torque. It serves as a suitable replacement for Baldor GPP12547, Bison 011-336-2060, and Bodine 1066 motors, subject to verification of shaft and mounting compatibility.

Key Specifications

• Horsepower: 1/8 hp
• RPM: 31
• Voltage: 90 Volts DC
• Amperage: 1.4 amps
• Enclosure: TENV (Totally Enclosed Non-Ventilated)
• Shaft Dimensions: 5/8" diameter x 1.5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first-stage steel helical gear followed by spur-type gears, lubricated with permanent semi-fluid grease to minimize leakage. Hardened steel output shafts with needle bearings support high load capacities. The keyed shaft design facilitates secure coupling, and the motor is compatible with Leeson speed controls (models 174307 and 174308). An optional conduit box (part # M1760021) is available to enhance installation flexibility. Always verify existing motor specifications, shaft, and mounting to ensure proper interchangeability.

Cross Reference

• Baldor GPP12547, Bison 011-336-2060, Bodine 1066 - Please cross check your existing motor specs, shaft and mounting to make sure the replacement Leeson will interchange with your existing equipment

Warranty

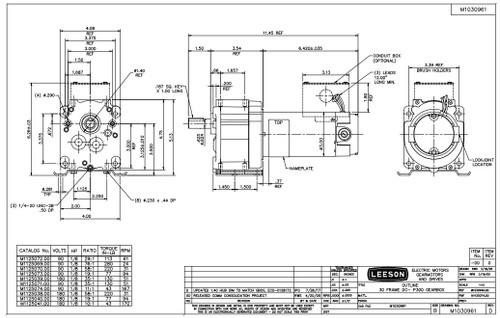

• Dimensional Drawing
