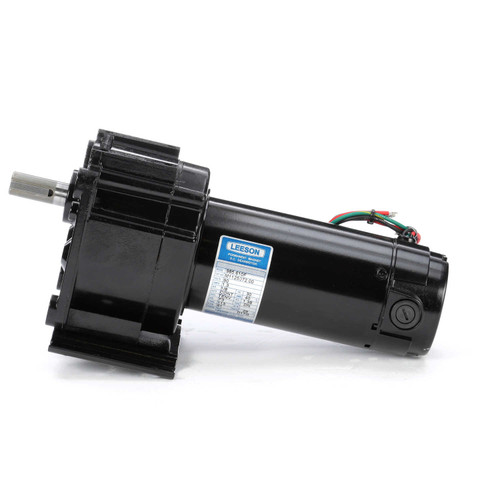

Leeson Parallel Shaft 1/8 hp, 61 RPM 90 Volts DC TENV Electric Gear Motor # M1125072

SKU:
M1125072
Weight:
12.00 LBS
Shipping:
Free Shipping
$352.82
  • 1/8 hp, 61 RPM, 1.3 amps, 90 Volts DC
  • Gear Ratio = 29
  • Torque 113 inch pounds
  • Over Hung Pounds = 267
  • Shaft 5/8" x 1.5"; Rotation = Reversible
  • TENV - Totally Enclosed Non Ventilated
  • Class F Insulation; Service Factor 1.0
  • Optional conduit box available
  • Keyed Shaft, Ball Bearings
  • One Year Manufacture Warranty.

Optional Conduit Box # M1760021 is available. Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage.Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Can use with Leeson speed control 174307, 174308.

985.610F, M1125072.00
