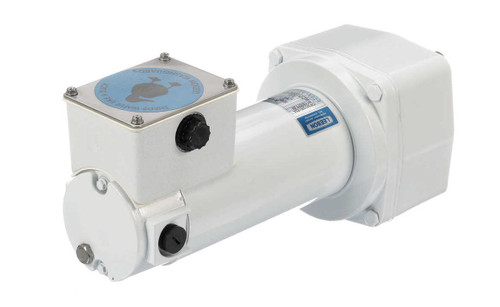

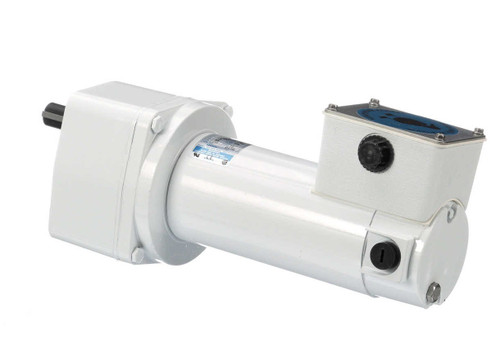

M1125271.00 Leeson Parallel Shaft Wash Down 1/4 hp, 250 RPM 90 Volts DC TENV Electric Gear Motor
This Leeson electric gear motor delivers reliable performance with a 1/4 horsepower output and 250 RPM speed, designed for wash down duty applications. It features a parallel shaft configuration and is suitable for replacing similar motors requiring a reversible rotation and durable construction.
Key Specifications
- Horsepower: 1/4 hp
- RPM: 250
- Voltage: 90 Volts DC
- Amperage: 2.3 amps
- Enclosure: Totally Enclosed Non Ventilated (TENV)
- Shaft Dimensions: 3/4" diameter x 1.63" length
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor incorporates precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. The output shaft is keyed and supported by needle bearings for high load capacity, with hardened steel shafts for durability. Lubrication is provided by permanent semi-fluid grease to minimize leakage risks.
The motor is compatible with Leeson speed controls models 174307, 174107, and 174102, facilitating easy integration into existing systems requiring speed regulation.
Warranty
1 Year Manufacturer Warranty
