M1125270.00 Leeson | Parallel Shaft Wash Down 1/4 hp, 83 RPM 90 Volts DC TENV Electric Gear Motor

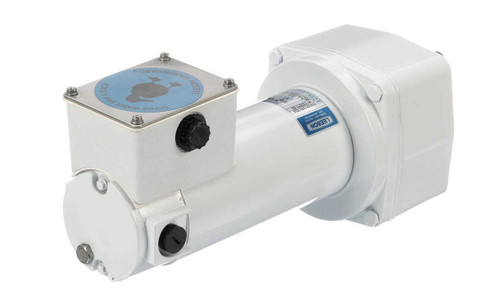

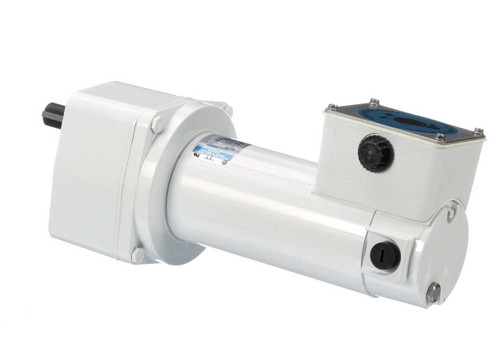

Leeson Parallel Shaft Wash Down Electric Gear Motor (M1125270.00)

This 1/4 hp, 90 Volts DC electric gear motor is designed for wash down duty applications requiring reliable, reversible operation at low speeds. It is ideal for replacing or upgrading motors in industrial equipment needing a parallel shaft configuration with a durable, totally enclosed non-ventilated (TENV) design.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 83
• Voltage: 90 Volts DC
• Amperage: 2.7 amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features precision-machined in-line steel gears, including a first stage steel helical gear followed by spur-type gears, ensuring smooth and efficient power transmission. It uses permanent semi-fluid grease lubrication to minimize leakage risks, and output shafts with needle bearings support high load capacities. Hardened steel keyed shafts provide secure coupling and durability. Compatible with Leeson speed controls models 174307, 174107, and 174102 for enhanced speed regulation.

Warranty

1 Year Manufacturer Warranty
