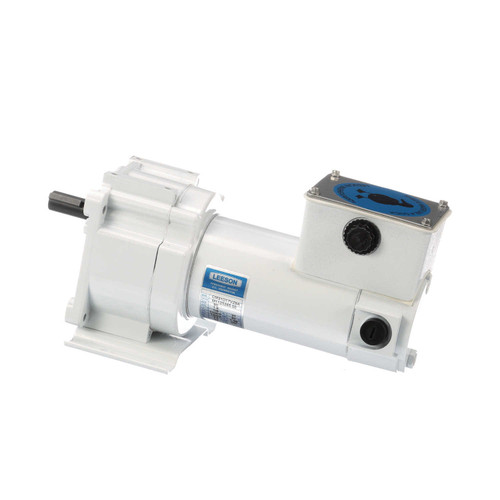

M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor
M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor
M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor
M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor
M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor
M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor
M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor
M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor

Leeson

M1125265.00 Leeson | Parallel Shaft Wash Down 1/8 hp, 167 RPM 90 Volts DC TENV Electric Gear Motor

(No reviews) Write a Review
$831.45
$705.07
SKU M1125265.00
UPC 6.92E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM

CURRENTLY OUT OF STOCK

Description
  • 1/8 hp, 167 RPM, 1.60 amps, 90 Volts DC
  • Gear Ratio = 11
  • Torque 43 inch pounds
  • Over Hung Pounds = 197
  • Shaft 5/8" x 1.5"; Rotation = Reversible
  • TENV = Totally Enclosed Non Ventilated
  • Wash Down Duty
  • Class F Insulation; Service Factor 1.0
  • Keyed Shaft, Ball Bearings
  • One Year Manufacture Warranty.

Features: Precision machined in-line steel gears, with a first stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, reducing possibility of leakage.Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Can use with Leeson speed control 174307, 174107, 174102

CM31D17VZ9A, M1125265.00

Specifications
!
